Digital Display Hydraulic Concrete Compression Testing Machine Ctm

Product Description

Product Description

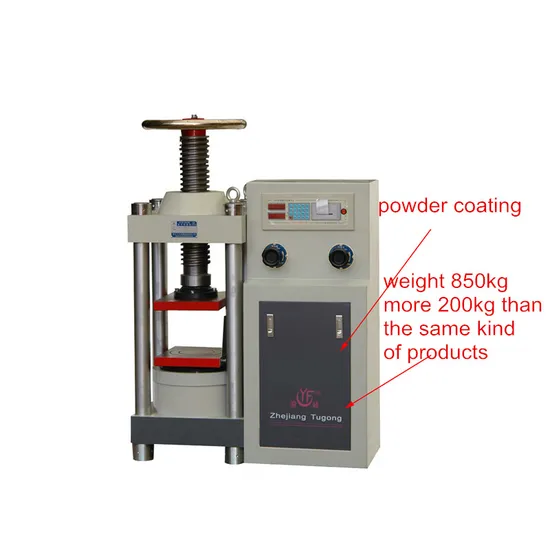

STYE-2000/1000 Digital Display Hydraulic Compression Testing Machine
Use:
STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes, cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.
Feature:
Efficient hydraulic power packs
Economic machines ideal for site use
Designed to meet the need for a simple, economic and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes
200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any
arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.
Specification:
STYE-1000
Max. testing power: 1000kN
Measuring range: 0-1000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 300×250mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 900×400×1090mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 650KGS
Noise: ≤80Db
STYE-2000
Max. testing power: 2000kN
Measuring range: 0-2000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 320×260mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 950×400×1160mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Noise: ≤80Db

Company Profile
Certifications
Why Choose us?
1. Superior Quality & Reasonable Price2. Professional Project Design Team & Complete Project Management System3. Wide Selection for Products, including soil, asphalt, concrete, cement, motor and rock4. Great Production Capacity, 14 modernized standard workshops5. Experienced Engineer & Satisfactory After-sales Service 6.MOQ:1 set is avaliable
7.Cover an area of 26,680 square meter

Packaging & Shipping
Packaging and shipping
Packing Material: Plywood Case meeting export long transport requirement.
Packing Method: Horizontal Packing to saving more shipping cost.
Shipping : within 5-10 days after receive 100% payment .
Shipping way: shipped by sea or Air is available.

After Sales Service
Our SERVICE
Your inquiries will be replied in 24 hours, 24 hours technical support by email
Honesty to working for you, after or before sale with our patient and sincerity.

FAQ
Are we a factory?
Yes,Factory + trade (integration),35years focusing on test instruments field.
What's the product delivery time?
Delivery time from 7 days-15 days according to the products.
What's your payment terms?
We accept T/T, L/C or Western Union.
What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.
What's your services?
For our products, we will give your professional guidance ( Product introduction and operation manual )
Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No.

---
