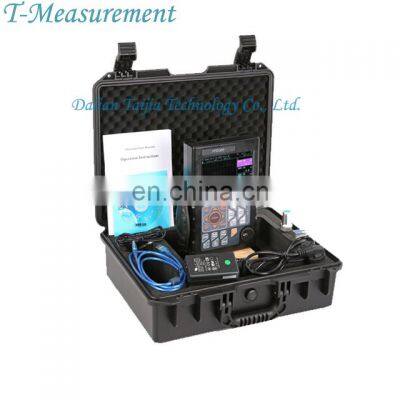

Product Description
Product Description
Product DescriptionMeasuring Range and Measuring ErrorRange of Scanning:0mm~10000mmResolution for scanning:0.1mm(2.5mm~100mm)Range of gain:0dB~130dBD-Delay:-20μs~+3400μsP-Delay:0μs~99.99μsSound Speed:1000m/s~15000m/sOperation EnvironmentTemperature:-20℃~50℃Hunimdity:20%~90%RHFree of strong magnetic field and corrosionLi battery 7.4V 4800mAhFeatures1.Automated calibration of transducer Zero Offset and/or Velocity ;2.Automated gain,Peak Hold and Peak Memory;3.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Diameter);4.Automated switch three staff gauge ((Depth d,level p,distance s);5.500 independence setup, any criterion can be input freely, we can work in the scene without test block;6.Big memory of 1000 A graph.7.Gate and DAC alarm;Acoustic-Optical alarm;8.RS232/USB port,communication with pc is easy;9.The embeded software can be online updated;10.Li battery, continue working time up to 10 hours;11.Display freeze;12.Automated echo degree;13.Angles and K-value; 14.Lock and unlock function of system parameters;15.AWS D1.1;16.Dormancy and screen savers; 17.Electronic clock calendar ; 18.Automated make video of test process and play; Connect the Upan,the length of video is unlimited19.Two gates setting and alarm indication;20.High-speed capture and very low noise;21.DAC,AVG,TCG,B Scan ; Solid metal housing (IP65);22.Automated calculate the size of the flaw with w ide bottom type in AVG function.23.6dB DAC functions;24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;25.Powerful pc software and reports can be export to excel;Detailed ImagesRange of scanning (mm)0~10000D-delay (us)-20~+3400P-delay0.0~99.99Sensitivity Leavings>=62 dBMTLVEL(m/s)1000~15000Dynamic range>=34dBFrequency Range (MHz)0.5~20BatteryLi battery 7.4V,4800mAhPower adaptorInput 100V~240V/50Hz~60Hz Output 9VDC/1.5AWorking temperature-20C~50CPort typeBNC or LEMO 001Working modeSingle probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)Packing & DeliveryStandard Accessories of Ultrasonic flaw detectorMain unit1 Unit1.5A/9V power adaptor1 Unitprobe connecting cable2 UnitsStraight probe3/4” 2.5MHz (One)Angle probe8×9 60°4MHz (One)Instruction manual1 UnitCarrying case1 UnitOptional Accessories of Ultrasonic flaw detector Serial cable1 (9 pin)Communication software for PC1 setRelated ProductsZBL-R630A Rebar scanner ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detector ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.HT-225W+ integrity voice report digital concrete rebound hammerHT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp:+8615998537470Skype:tmeasurement02web:/
>>
