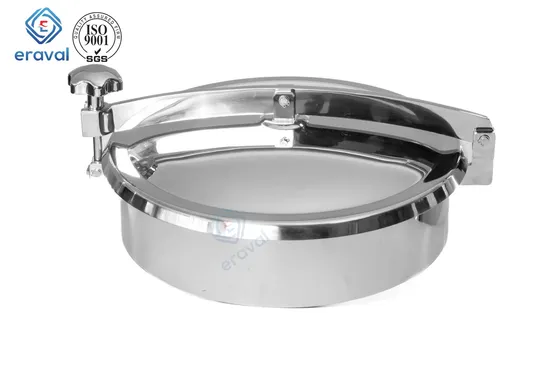

Sanitary Food Grade Round Outward Non Pressure Round Tank Manway Manhole Cover with Silicone Gasket

Product Description

Round Man Hole Cover
Applications:
The man hole cover is mainly used for tanks in the fields of food,beverage,chemical,etc.
Operating principles:
Normal pressure manhole is the most common manhole, is not a pressure manhole, generally installed in the irrigation, is the production workers or repair workers to build cans, cleaning cans, inverted inlet and outlet, manhole strength and density is the key technology, but only for the pressure manhole, normal pressure manhole strength and sealing requirements.
This design prevents fluid spillage, for example, during in-situ cleaning (CIP) and similar process treatments, or during transportation, such as on mobile tanks or road filling vehicles.
The lid is designed to provide more than just water tightness protection for the tank, as it is also equipped with a splash shield to prevent possible spillage of fluids during cleaning operations.

Certification	ISO9001
Size	DN200-DN600
Material	SS304/SS316L
Max.Pressure	1.0bar
Application	Food,Beverage,Chemical
Sealing Material	Silicone,EPDM,NBR,Viton
Internal surface	Ra0.8μm-0.5μm
Height	100,120,150MM
Outside surface	Polishing finished,sub-light finished,Sand-blasting finished.
MOQ	1PCS
Outward opening man hole cover
Plastic hand wheel or stainless steel hand wheel

Packaging & Delivery

Package Size	20.00cm*30.00cm*20.00cm
Package Gross Weight	5.000Kg
Lead Time	7 Days(1 - 10 Pieces)
	To be negotiated(> 10 Pieces)

Stainless Steel Manhole Quality Control:

---
