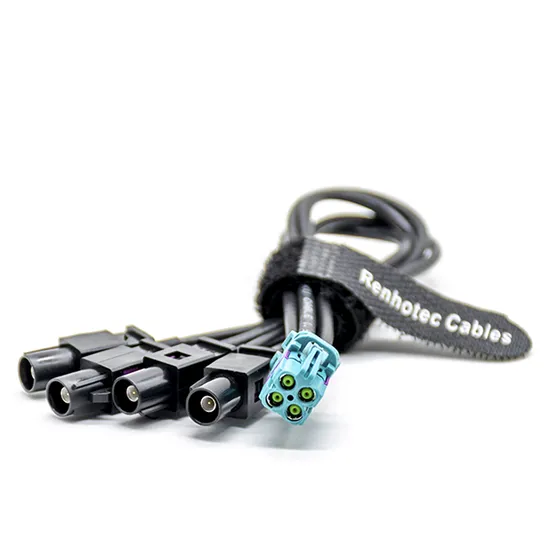

Mate-Ax Mini Fakra Cable for Automobile

Product Description

Product Description
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier...
Detailed PhotosFull Series : New Automotive Power Connector Cable
All types of Connector from OEM Manufacturer in China
Product Description
FAKRA connectors are specifically designed for automotive applications. They are based on the SMB connector interface FAKRA (Automated Expert Group) to establish a unified connector system and standards that everyone will follow. Due to its special standard locking system, FAKRA connectors meet the high performance and safety requirements of today's automotive industry.
Products Material
Plastic Housing: PA66+30%GF
Body & Center Contact: Bronze
Insulator: PTFE
1. Mounting groove for cable connectors for chassis mounting
2. Secure primary locking system between plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm
4. Protection of the coaxial insert by shock and vibration resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 13 different codes

FAKRA
Temperature Range	-40°~+125°C
Characteristic Impedance	50Ω
Frequency Range	DC~6GHz
Operating Voltage	335V r.m.s at sea level
Withstand Voltage	1000V r.m.s at sea level
Core Connection Resistance	≤20mΩ
Insulation Resistance	≥1000mΩ
Intervention loss	≤20mΩ 0.25dB(for a mated pair)
Voltage	≤1.30

Application
Company Profile
Renhotec Hardware Electronics Co., Ltd.RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today's cutting edge applications. RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications. Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs. - Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.- All items are in line with EU ROHS and REACH environmental requirements.- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
Our AdvantagesCustomized DesignProfessional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.Technology ImprovementEstablish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintainQuality Inspection CenterWith professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQQ :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.

---
