4 Channels Mobile Car DVR Recorder Mdvr 720p Ahd Mobile DVR

Product Description

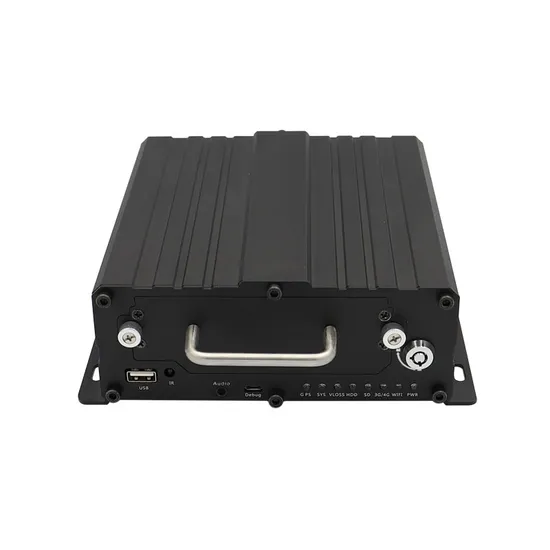

Meitrack 4CH 720P HDD & SD Card Mobile DVR MD511H
Product Overview
Specifications

Dimension	177 mm x 162 mm x 63mm
Weight	1750g (including the disk)
Power input	DC: 8V-36V/A
Power consumption	Start the host audio and video: about 6.6 W Single MCU: 45mA Connect a camera: 120-200 mA (day); 400-600 mA (night)
Operating temperature	-20°C to 70°C
Video input	4-channel 720P live video recording and playing
Video output	1-channel CVBS
Compression standard	H.264
Image display	Support one-image and four-image display
Audio compression	G.726
Audio input	9-channel audio input; 8-channel AV-IN interface; 1-channel voice intercom interface
Audio output	5-channel audio input; 4-channel AV-IN interface; 1-channel voice intercom interface; 1-channel handle interface
Recording search and playback	Search and play back videos based on the channel, recording type, or time.
Recording method	Simultaneously record the ACC, alert, sound, and video.
WiFi	802.11 b/g/n; frequency: 2.4 GHz
GPS/GLONASS	Detect the insertion, pull-out, and short circuit of the antenna.
Storage medium	1 SD card and 1 SATA hard drive/SSD hard drive
2G/3G/4G	MD511H-E GSM: B3/B8, WCDMA: B1/B8 LTE FDD: B1/B3/B7/B8/B20/B28A MD511H-A WCDMA: B2/B4/B5, LTE FDD: B2B4/B12 MD511H-AU GSM: B2/B3/B5/B8, WCDMA: B1/B2/B5/B8 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 MD511H-J WCDMA: B1/B6/B8/B19 LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 MD511H-G GSM: B2/B3/B5/B8, WCDMA: B1/B2/B4/B5/B6/B8/B19 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B25/B26/B18/B19/B20/B28 LTE TDD: B38/B39/B40/B41

Accessories

ACCESSORIES	MD511H MDVR
	Power & ACC cable
	I/O cable
	USB cable
	GPS antenna
	3G/4G antenna
	WiFi antenna
	Hard disk lock key
	CD download card
OPTIONAL ACCESSORIES	4 Cameras
	SD card
	SSD/HDD (2.5 inches)
	CVBS display
	Microphone & speaker
	Ultrasonic fuel level sensor
	RFID reader
	LED display

Certificates: CE
Meitrack MS03 Advanced GPS Tracking Software
MMS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for
developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Contact us to get a free demo!
Case StudyCity Buses
MD522S | Mexico
The Mexican government introduced Meitrack's MDVR bus management solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. In this project, Meitrack MD522S, camera, LCD display, SOS button, A91 passenger flow sensor and MS03 tracking platform work together to provide a one-stop internal bus monitoring solution.
Armored Vehicles
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows
authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring
center can quickly and efficiently keep track of what's happening inside the vehicle, remotely cut off the en gine to prevent the
vehicle from moving, and take immediate action to minimize the loss.
Company OverviewSince 2002.20,000m2 state of the art manufacturing facility based in Shenzhen, China.Placed in-house R&D centers in Taiwan, Shenzhen and the United States.Providing OEM&ODM service.Providing software development service.Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.
R&D Center3 R&D centers in Taiwan, USA and Shenzhen.50+R&D professionals including advanced engineers, and supervisors.Equipped with professional testing devices 50+intellectual properties, including industrial design patents and software copyrights.More than 18% of sales revenues invested in research and development every year.
ManufaturingStandardized Production ManagementGPS signal generators MP9000 & MP9100 Agilent
GSM/GPRS integrated tester 8960 Reflow soldering,
SMT machine, solder paste printer, AOI tester...
Strict Quality Control
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
Certs: CE, FCC, RoHS,PAHs, etc.
