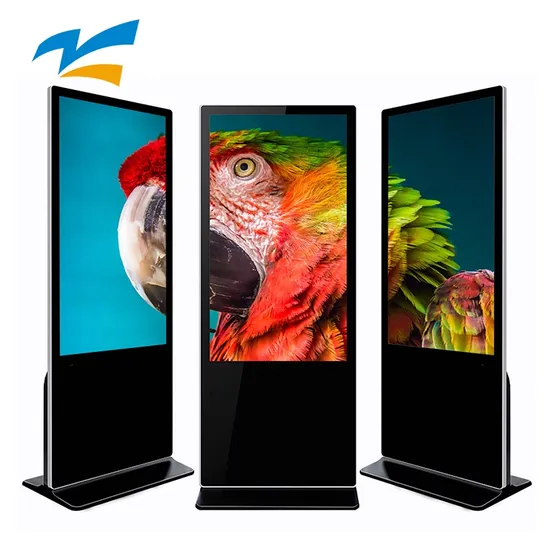

| LCD Panel |
| size | 43/49/55/65 inch |
| Native Resolution | 1920×1080 |
| Display Size | 930.24(H) x 523.26 (V)mm |
| display colors | 16.7M |
| viewing angle | H:176° V:176° |
| brightness | 450cd/m2 |
| contrast ratio | 5000:1 |
| response time | 6ms |
| Audio system |
| Speaker | 2×5W(8Ω) |
| Sound mode | stereo |
| Power |
| input voltage | AC100-240v 50/60HZ |
| standby power | Less than 1W, support low power standby mode |
| Rated power | Less than 100W |
| appearance |
| texture of material | Aluminum profile |
| The appearance of color | Black (can be customized) |
| installation | Floor type |
| Appearance size | 1789*635*80mm |
| work environment |
| Working temperature and humidity | 0ºC~50ºC/20%~80% |
| Storage temperature and humidity | -10ºC~60ºC/5--95% |
| Machine life | 50000hrs |
| Main hardware index |
| CPU | A83T, Eight core 2.0GHz |
| Memory | 2G (4G optional) |
| internal memory | NAND FLASH 8G (16G,32G optional) |
| Decoding resolution | 1080P |
| operating system | Support 4.0.3 Android above |
| Play mode | Support cycle, timing, spots and other display modes |
| network support | Ethernet, support WiFi, wireless peripheral extension |
| Video playback | Support WMV, avi, flv, RM, RMVB, MPEG, TS, MP4, etc |
| Picture format | Support BMP, JPEG, PNG, GIF, etc. |
| USB2.0 | 2 USB |
| Ethernet | 1, 10M/100M adaptive Ethernet |
| LVDS output | 1, can be directly driven 50/60Hz LCD screen |
| HDMI output | 1, support 1080P output |
| Audio / video input / output | Support CVBS video input, left and right channel output (support dual channel 8R/3W, 4R/6W speaker) |
| RTC real time clock | support |
| Timing switch | support |
| System upgrade | T-card support USB/ / network upgrade |
A:We are using original LCD panel. Such as BOE, LG, SAMSUNG, AUO, PHILIP, SHARP etc,.
A:1-3years warranty time.
A:2-15 days according to different models and quantities of the order.
A:Yes, we can offer sample for you testing at sample-price which can be refunded after you mass order.
A:Professional training will be offered by our technology engineer till you master it.
