Welcome to visit

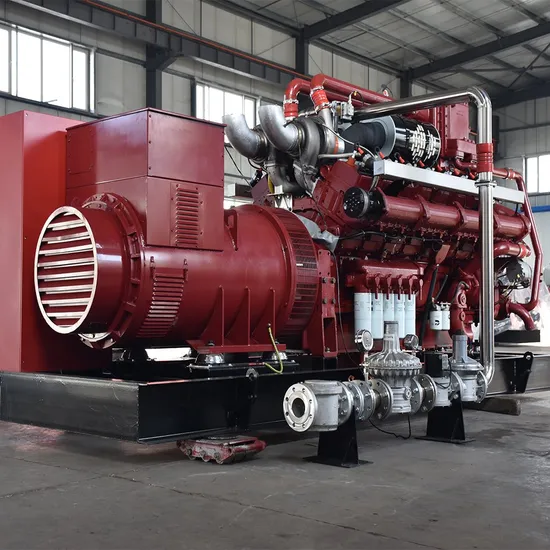

High Efficiency 1000kw 50Hz 1500rpm CNG LPG LNG Methane Natural Gas Generator Silent Power Electric Water Cooled Biogas Biomass Generator Set

US$325,000.00
1-2 Sets
US$300,000.00
3-9 Sets
US$275,000.00
10+ Sets

Basic Info.

Model NO.
WL1000
Output Type
AC Three Phase
Gas Source
Gas
Certification
CE, TLC, ISO, CCC
Power
＞200kW
Standard
Standard
Model
Wl1000
Power Rating
1000kw
Rated Speed
1500rpm
Frequency
50Hz
Rated Current
1800A
Dimension
6500*2050*2450mm
Weight
9500kgs
Intake
Exhaust Water Cooled Turbocharged
Displacement
50.4L
Compression Ratio
12:1
Engine Oil Consumption
<0.3/Kw.H
Exhaust Gas Temprature
580 Degree
Fuel Supply Method
Pre-Mix
Lubricating Oil Capacity
185L
Coolant Capacity
380L
Transport Package
Export Standard Packing
Specification
6500*2050*2450mm
Trademark
YSD
Origin
China
HS Code
8511509000
Production Capacity
5000 Set/Year

Packaging & Delivery

Package Size
800.00cm * 240.00cm * 280.00cm
Package Gross Weight
9500.000kg

Product Description


NO. ITEM Data
1 Model WL1000
2 Basic Power(KW) 1000
3 Back up power (KW) 1000
4 Rated speed 1500rpm
5 frequency 50HZ
6 Rated current(A) 1800
7 Dimensions(mm) 6500*2050*2450mm
8 Weight(kg) 9600
9 Rated voltage 400V/230V
10 Exhaust gas temperature(ºC) 580±10
11 Excitation mode brushless
12 Insulation class H
13 Protection level IP23
14 Voltage regulation mode automatic adjustment

Q1:Are you trading company or factory?
A:We are factory.
Q2:What's your warranty period?
A:Our warranty is 1 year or 1500 running hours whichever come first.Based on special requirement,the warranty could be extended.
Q3:What is power range of our gas generate set?
A:Range from 30KW-1500KW.
Q4:What is the MOQ?
A:1 set.
Q5:What's the delivery time?
A:to be negotiable.
Q6:Do you accept OEM/ODM service?
A:Yes,we could produce it according to your requirement.
Q7:What is the Payment term?
A:30% TT in advance,and balance before delivery.
