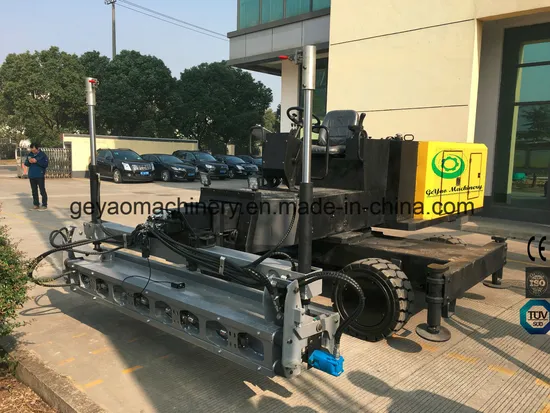

Ride on Hydraulic Laser Concrete Screed Gyl-500

US$87,000.00-115,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GYL-500
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Certification
ISO9001: 2000, CE, TUV SGS
Condition
New
Color
Orange
Engine Type
Yanmar
Power Kw(HP)
20kw
Weight Kgs(Lbs)
3500kgs
Dimension(L*W*H)
L4000*W2080*H1900
Boom Reach
5m
Head Size
2.5m
Levelling Area One Time (Square Meters)
12.5
Warrenty
1 Year
Laser Generator
Topcon
Laser Receiver
Topcon
Transport Package
in Steel Frame
Trademark
geyo
Origin
China
HS Code
8479102100
Production Capacity
100PCS/Year

Product Description

High efficiency Laser polishing smoothing concrete screed GYL-500
Features and Advantages:
1.Imported servo drive system,smooth running,precise timing,strong overload ability.
2.Leica laser system,high working precision and reliability
3.All electric drive,per square meter,low fuel consumption,low operation cost.
Specification:
Model GYL-500
Dimension mm L4000*W2080*H1900
Weight kg 3500
Boom Reach m 5
Head Size m 2.5
Leveling area one time m2 12.5
Engine YANMAR
Engine Power kw 20
Laser Generator Topcon
Laser Receiver Topcon
Grade Control System SAUER
Self Leveling Head Control Standard
Soft Landing Head Control Standard
Stabilizer Control Manual Valve Lever
Steering Control 2-wheel Power Steering
Fuel tank Capacity 70L
Walking Speed km/h 9
Max. turning angle 360°
Vibration Frequency rpm 3000
Stir speed rpm 200

MACHINERY OPERATION PROCESSING
ASSEMBLING
PACKAGE
TRANSPORTATION
PERFORMANCE
