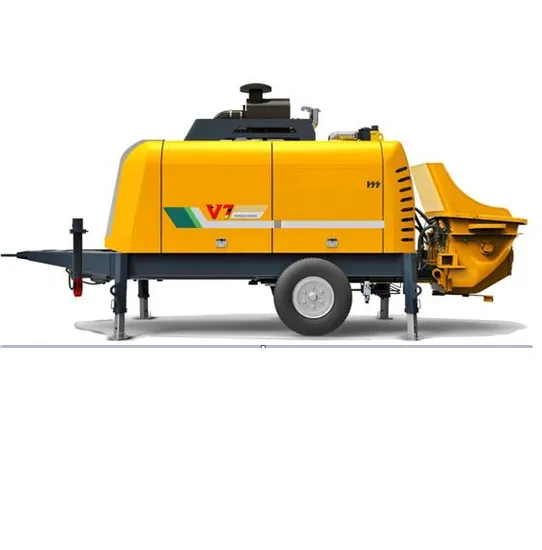

Chinese Small 60m3/H Concrete Trailer Pump with Diesel Engine Hbt6013K

Product Description

Chinese hot sell Small 60m3/h concrete trailer pump with diesel engine HBT6013K
Theoretical pumping efficiency 60m³/h, concrete outlet pressure 13MPa Weichai engine,118/2200 KW/r/min Pumping unit with openhydraulic circuit Fully-hydraulic switchover system MPS (Micro Pressure Shock) reversing buffering technologyMPS ROCK valvetransfer tube Large diameter slide valve with casting oil passage Intelligent electrical control system Remote / Manual control method for boom and pumping unit Centralized lubrication system for pumping unit Piston automatic return technology, easy to replace piston Main hydraulic pump overload and overheat protection technology Automatic mixing switchover protection technology Accessoriesfor safety Accessories for cleaning and pipes washing

Item		Parameters
Theoretical output (high/low pressure)	m3/h	40/65
Delivery pressure(high/low pressure)	MPa	13/8
Cylinder switchover time(high/low pressure)	Times/min	12/22±1
Maximum aggregate diameter	mm	≤40
Concrete cylinder(diameter×stroke)	mm	Φ200×1400
Filling height	mm	1370
Hopper capacity	L	600
Concrete slump	mm	80-230
Hydraulic oil tank capacity	L	600
Hydraulic circuit		Open
Transfer tube		ROCK valve
Engine brand		WEICHAI
Engine model		WP4G160E331
Engine power	kW/min	118/2200
Oil pump brand		REXROTH
Overall dimension	mm	6115×2100×2810
Overall weight	kg	6900

---
