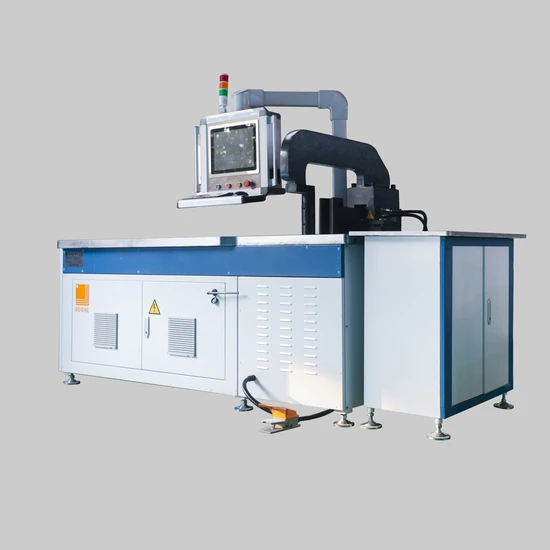

Smart CNC Hydraulic Busbar Bending Machine

Product Description

Products Description:
1. Automatic busbar bending machine adopts unique large closed type bending structure. 2. Busbar bending machine also has the convenience of the open type bending. 3. Automatic bending machine possesses the premium property of the closed type bending. 4. The bend unit (Y-axis) of automatic bending machine has the function of angle error compensation, its bending accuracy can meet the high performance norm. 5. When it is in vertical bending, the busbar bending machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release. Advantages: 1.Closed Bending Structure --Using a precision linear guide to ensure fabricating accuracy. 2.3D Software Programming --Accurately calculating the punching position by 3D graphics. 3.Touch Screen -- Allowing the easy setting of die parameters and the operation of equipment. 4. High-Speed-- Operation System Guarantee high precision and fast efficiency.
Specification:

Item	Unit	Parameter
Nominal Force	KN	400
Bender Accuracy	Degree	±0.3°
Max bending Stroke	mm	250
Stroke of side striker	mm	2000
Max Moting Speed of Side striker(X Axis)	m/min	15
Bending Head(Y Axis)	m/min	Fastest 5; low: 1.25
Min inner Width of U-shape bend	mm	40(Note:Please consult us for smaller dimensions)
Max bending angle	degree	90
Level bending (W*H)	mm	200X15
Vertical Bend(W*H)	mm	125×15
Total power	kw	7.2
Main machine dimension:L*W	MM	4150X1590
TOTAL Weight	kg	2700

Configuration:

Control Section
Serial No.	Name			Brand Name
1	Programmable Control			OMRON
2	Sensor			Telemacanique From Schneider
3	Control Button			OMRON
4	Touch Screen			OMRON
5	Computer			Lenovo
6	AC Contactors			ABB
7	Circuit Breaker			ABB
8	Servo Motors			YASKAWA(Japan)
9	Servo Drivers			YASKAWA(Japan)
10	Control software and Three-dimensional computer-aided design			Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.		Name	Brand Name
1		Precision Straight rail	Taiwan HIWIN
2		Precision Ball Screw	Taiwan HIWIN
3		Bearing	Japan NSK

Packing details
1) Applying Anti-Rust Oil
2) Covering with stretch film
3) Covering aluminum air bag
4) Vacuuming air bags
5) Boxing all the pallet
6) Loading to the container
