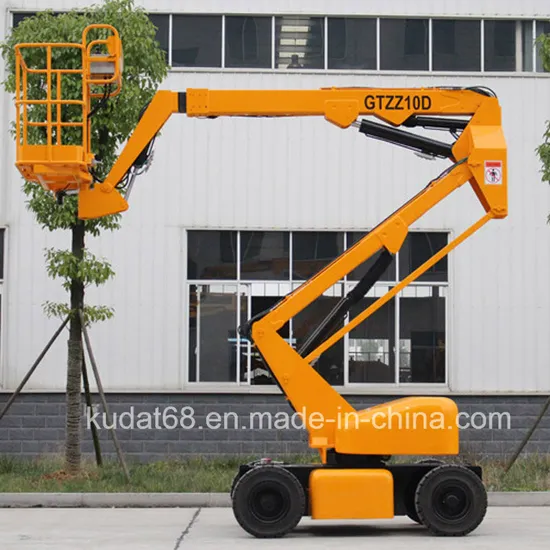

10m Electric Powered Articulated Hydraulic Boom Lift Gtzz10d

Product Description

Description:
Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.

Features:
1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 26m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.

Item	GTZZ10D
Working height maximum	11.75m
Platform height maximum	10.05m
Platform Length	0.76m
Platform Width	1.53m
Height-stowed	1.95m
Length-stowed	5.33m
Width	1.5m
Wheel Base	1.65m
Ground clearance center	200mm
Horizontal reach maximum	6.5m
Lift capacity	200kg
Turning radius (outside)	3.8m
Turntable Swing	360°continuous
Speed of Turntable Swing	0~1.5rpm
Leveling mode	Automatic
Platform rotation	180°
Tire	590*195 rubber tire
Hydraulic oil tank capacity	70L
Weight	5300kg
Travel speed(stowed)	4km/h
Travel speed(raised or extend )	0.8km/h
Grade ability	20%
Drive and turn mode	4×2×2
Battery	6×8/210Ah TROJAN

---
