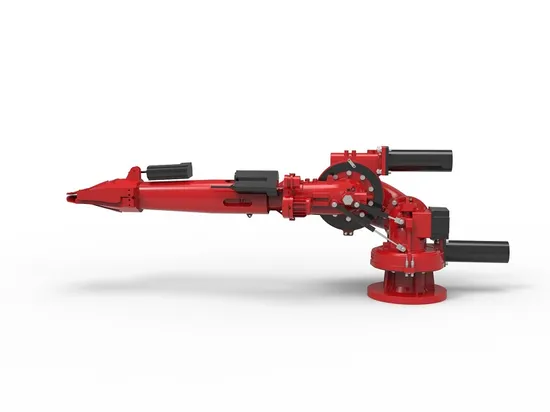

Fixed Electrical Control Foam/Water Dual-Purpose Fire Monitor for Fire Truck

Product Description

Fixed Electrical Control Foam/Water Dual-purpose Fire Monitor For Fire Truck

1.Factory history: Our Series Fire-fighting monitor,Automatic tracking and Positioning jet fire-fighting devices and fire-fighting robots fully reflect our company's technological innovation ability.
The products are exported to foreign countries and widely used in large space fire-fighting systems, petrochemical fire-fighting, wharf fire-fighting, ship fire-fighting, vehicle-mounted fire-fighting guns, life-saving, rescue equipment, precision equipment fire-fighting and other fields. They are few in China.
Professional fire-fighting gun manufacturer with R&D capability and export capability.
2.Advantages:
a. Concentrated jet flow and long range.
b. Large action area and multi-function.
c.Easy to operate and the barrel can either rotate or fasten.
d.Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines.
3.Working Principle:
The PSKD series worm drive foam/water dual fire monitor also consists of base, shell body, nozzle, barrel and horizontal swing mechanism. What differs is that this model adjusts angles by worm drive group. Foam solution flows into shell from base and was atomized when it pass the nozzle. The monitor inhales air to make the foam solution become foams and shoot out from barrel. Operators can adjust its elevation and horizontal angle while using.
4.Technical Parameters:
We make available customized design for our clients special request.
Application: Boat,Fire Fighting Truck,Fire Robot,Anti-riot Water Cannon Vehicle
5.Picture of component:
6,Control accessories:
7.Specification:

Model	PLKD32-Y	PLKD48-Y	PLKD64-Y
Work pressure	0.8Mpa
Flow(L/s)	32L	48L	64L
Water flow range	≥55m	≥70m	≥75m
Bubble range	≥48m	≥60m	≥65m
25% liquid deposition time min (20°)	≥2.5
Foaming multiple	≥6
Horizontal rotation angle	0-360°
Pitch angle	'-90~+90° (can be customized)
Horizontal speed	24°/s
Pitch speed	12°/s
Operating Voltage	24VDC
Power consumption	Standby:15w Maximum:150w
Material	Gun head: Aluminum alloy Gun body: Aluminum alloy
Weight	33kg
Connection size	DN100(GB/T9112~9124-2010;PN16)
Way of working	Sitting
Executive standard number	GB 19156-2003; GB 19157-2003

8.Shipemnt Package

---
