Durable 41*41mm and 41*21mm Solar Frame Pallet Roll Forming System

Product Description

Product Description

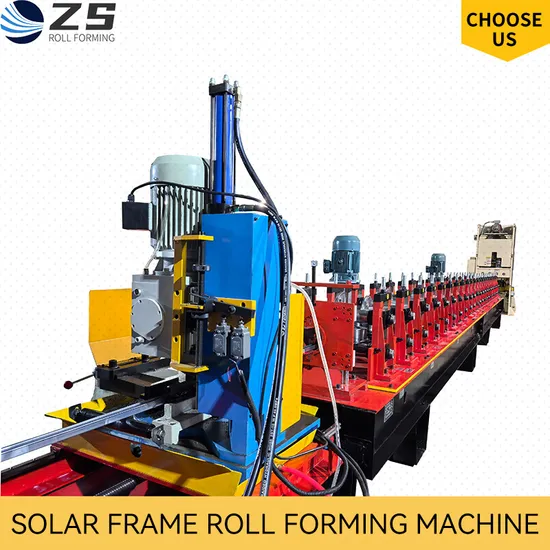

Solar Panel Frame Roll Forming Machine Our Solar Frame Machine boasts a robust casting steel frame structure, ensuring unparalleled stability during operations, making it a cornerstone for creating precision solar frames.
Engineered with an AC frequency conversion motor reducer drive and gearbox transmission, this machine features polished roller surfaces with hard plating, heat treatment, and a premium chrome coating for unmatched durability.
The quality of the forming rolls is crucial in determining the shape of the solar frames. We offer customization to match your specifications with cassette options, allowing you to achieve diverse designs cost-effectively.
Profiles:
Material:
Effective Width: 41mm Effective Width Tolerance: ±0.5mm Material Thickness: 2.0-3.0mm Length Tolerance: ±1(4m) Applicable Material: Galvanized Sheet (GI) Inspection Thickness: 2.0mm-3.0mmCold Rolled Steel (CRC)Designed to work with materials having a yield strength of 235Mpa-550Mpa
Working Flow:
The seamless workflow includes: Decoiler → Leveling Device → 125 Tons Press Machine → Roll Forming System → Fly Saw Cutter → Exit Rack
Detailed Photos

Robust 3Tons Capacity Electrical Decoiler Equipped with an Advanced Flattening System: Included One Set
Intelligent Electrical Control for Steel Coil Inner Bore Shrinkage and Precision Stopping
Maximum Feeding Width:600mm
Versatile Coil ID Range:508±30mm, Expansive Outside Diameter:1500mm
Impressive Max Capacity:5ton, Dynamic Motor:3KW, Enhanced Frequency Speed Control Mechanism
125 Tons High-Performance Press Machine Pre-roll forming equipped with an Efficient Punching Model Set. Punching Machine with Comprehensive Safety Covering and Convenient Access Door
Robust Body Frame Constructed from H450 Grade Steel through Precision Welding Durable Side Wall: Premium Casting Steel; Rollers Expertly Crafted from High-Quality Bearing Steel GCr15,Precision Machined and Enhanced with Hard Chrome Coating; Shafts Made from Superior 45# Steel,Undergoing Quenching and Tempering Heat Treatment, with Protective Hard Chrome Plating. Diameter=φ75/85mm, Precisely Machined Gear & Chain Drive Encompassing 18 Intricate Steps for Optimal Forming Main Motor Power=22KW,Integrated Frequency Speed Control for Smooth Operation Efficient Speed Reducer Motor:K Series Product Speed:10-15m/min(Inclusive of Punching and Cutting Time)
Sophisticated Flying Saw Cutting Technology Post-Cut Precision, Non-Stop Operation Ensuring Long-Term Functionality without Blanking
Universal Cutting Solution Suitable for All Design Variations.
Hydraulic Motor Power: 5.5KW ;
Innovative Cutting Tool: No-Flying Design
Advanced PLC Control System Automated Control of Quantity and Cutting Length for Unmatched Precision Seamlessly Input Production Data (Batch, Pcs, Length, etc.) Directly on the Touch Screen for Effortless Automated Production.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Delat (German brand)
Inverter	Delta (German brand),follow with customer's requirment
7-Inch Color Touch Screen	Delta (German brand),follow with customer's requirment
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor,follow with customer's requirment
Thermal Relay	Siemens(German brand),follow with customer's requirment
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V follow with customer's requirment

Comprehensive After-Sale Service:
1. Warranty Period Extends for 18 months post receipt of the machine by the client. Within 24 Months, We Provide Free Courier Service for Replacement Parts to Clients at No Added Cost 2. Unrivaled Technical Support Throughout the Entire Lifespan of Our Machines 3. Our Expert Technicians are Available for On-Site Installation and Worker Training at Client Factories, Subject to Additional Cost
Terms Of Trade: Dive into the seamless world of transactions with Cangzhou Zunsheng Import and Export Co., Ltd., where our terms of trade are designed to offer unparalleled flexibility and transparency. Experience a partnership that prioritizes your needs, ensuring smooth and efficient dealings for our acclaimed Durable 41*41mm And 41*21mm Solar Frame Pallet Roll Forming System.

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style: Immerse yourself in the sophistication of our packing style at Cangzhou Zunsheng Import and Export Co., Ltd. Engineered for excellence, each unit of the Durable 41*41mm And 41*21mm Solar Frame Pallet Roll Forming System is meticulously packed to safeguard its pristine condition, ensuring that it reaches you in perfect form and function.

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Our Advantages: At Cangzhou Zunsheng Import and Export Co., Ltd., we pride ourselves on delivering extraordinary value and innovation with our Durable 41*41mm And 41*21mm Solar Frame Pallet Roll Forming System. Our unparalleled advantages include cutting-edge technology, exceptional durability, and a commitment to sustainability, setting us apart in the global marketplace and ensuring your complete satisfaction.

---
