Product Details
Product Description
Product Description
0.6/1kV AL or Cu / XLPE / SWA /PVC Power Cable 35mm2 power cable
Product Description
Low Voltage XLPE insulated 35mm2 power cable is used for transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
The Low Voltage XLPE insulated 35mm2 power cable can be produced according to our factory specification which is equivalent to the standard IEC60502.The factory can also design and manufacture special power cable according to the other standards required by the customers.

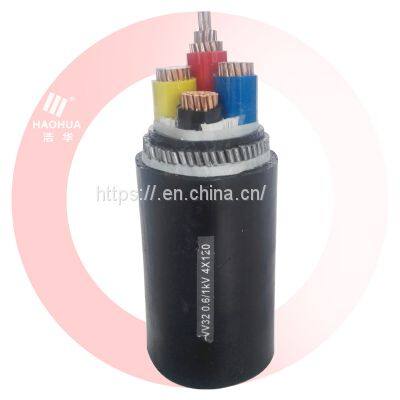

Product photo
AL/cu/XLPE/SWA/PVC XLPE 35mm2 power cable
AL/CU/XLPE/SWA/PVC XLPE 35mm2 power cable
XLPE Insulated Steel Armored Electric Power Cable
|
Type
| Constructions
| Number of cores
| Rated Voltage kV
|
0.6/1(1.2)
| 1.8/3
1.9/3.3
|
Nominal cross-section of conductor mm2
|
1,Cu/PVC/PVC Power Cable
2,Cu/XLPE/PVC Power Cable
3,Cu/XLPE/LSZH Power Cable
4,Al/PVC/PVC Power Cable
5,Al/XLPE/PVC Power Cable
6,Al/XLPE/LSZH Power Cable
| Conductor: Copper or Aluminum
Insulation: PVC or XLPE
Over sheath: PVC, PE or LSZH
Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property.
| 1
| 1.5-800
| 10-800
|
2
| 1.5-500
| 10-500
|
3
| 1.5-500
| 10-500
|
4 (3C+E)
| 1.5-500
| 10-500
|
5 (4C+E)
| 1.5-500
| 10-500
|
|
1,Cu/PVC/PVC/STA/PVC Power Cable
2,Cu/XLPE/PVC/STA/PVC Power Cable
3,Cu/XLPE/LSZH/STA/LSZH Power Cable
4,Al/PVC/PVC/STA/PVC Power Cable
5,Al/XLPE/PVC/STA/PVC Power Cable
6,Al/XLPE/LSZH/STA/LSZH Power Cable
| Conductor: Copper or Aluminum
Insulation: XLPE or PVC
Inner sheath: PVC, PE or LSZH
Armor: Steel tape or Aluminum tape
Over sheath: PVC, PE or LSZH
Remark: The cable can be of flame retardant,
fire resistance, environment friendly or other property.
| 1
| 1.5-800
| 10-800
|
2
| 1.5-500
| 10-500
|
3
| 1.5-500
| 10-500
|
4 (3C+E)
| 1.5-500
| 10-500
|
5 (4C+E)
| 1.5-500
| 10-500
|
|
1,Cu/PVC/PVC/SWA/PVC Power Cable
2,Cu/XLPE/PVC/SWA/PVC Power Cable
3,Cu/XLPE/LSZH/SWA/LSZH Power Cable
4,Al/PVC/PVC/SWA/PVC Power Cable
5,Al/XLPE/PVC/SWA/PVC Power Cable
6,Al/XLPE/LSZH/SWA/LSZH Power Cable
| Conductor: Copper or Aluminum
Insulation: XLPE or PVC
Inner sheath: PVC, PE or LSZH
Armor: Steel Wire or Aluminum wire
Over sheath: PVC, PE or LSZH
Remark: The cable can be of flame retardant,
fire resistance, environment friendly or other property.
| 1
| 1.5-800
| 10-800
|
2
| 1.5-500
| 10-500
|
3
| 1.5-500
| 10-500
|
4 (3C+E)
| 1.5-500
| 10-500
|
5 (4C+E)
| 1.5-500
| 10-500
|
Company Information
Sonorous Cable Co., Ltd.
Established Year: 1988
Registered capital of RMB: 201,800,000
Total assets : 28.7millions
Factory Area: 65400m2
Manufacturing Capacity per year: 250000km
Number of Employees: 460
Packaging & Shipping
FAQ
Q 1: I didn’t find my needed cable in this page.
Answer: Please find my contact information in the end of this page and contact with me by email or mobile, I will send you our catalog and price list.
Q 2: What’s your Minimum Order Quantity?
Answer: Normally, 100m for small wires. 200m for unarmoured cable. 500m for armoured cable. 1000m for power cable
Q 3: When can i get the price and what’s the validity?
Answer: For standard types and small orders, it take less than 24 hours. For big quantity and plenty types, it takes less than 48 hours. Validity is 7 days or as per LME price for tenders and big orders.
Q 4: What’s your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Or LC at sight.
Q 5: What’s your delivery time?
Answer: It depends on whether we just has the stock for your type. Or, it takes about 10 - 15 days for normal orders.
Q 6: How is your quality guarantee?
Answer: It will be stated along with our quotation sheet.
Q 7: What’s your package method?
Answer: Usually, it’s cable reel for wires. Wooden drums for small size cables and steel drums for big size cables. Anyway, all are exporting package to assure no damage in the transportation process.
Ms. echo
Cell phone: 0086-15106980528 Skype: hongliangcablesales7
QQ: 469855079 E: echo(at)
Welcome your inquiry of AL/cu/XLPE/SWA/PVC XLPE 35mm2 power cable~
>>
