| US$68,000.00-98,000.00 | 1 sets (MOQ) |

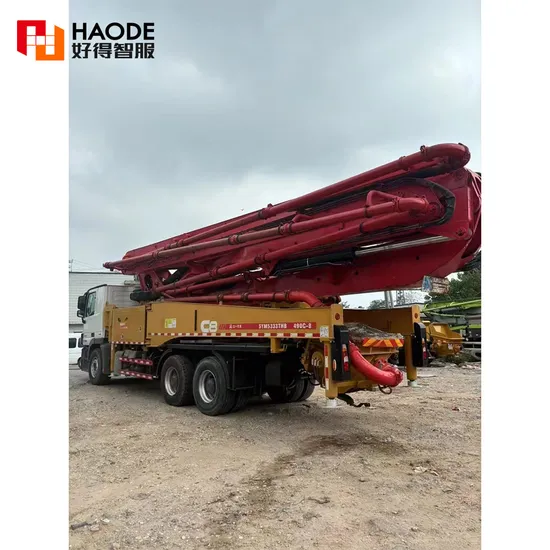

| Vehicle parameters | |
| Length | 16600mm |
| Overall width | 2550mm |
| Overall height | 4000mm |
| Total weight | 53000kg |
| Boom leg parameters | |
| Vertical height of the boom | 66.2m |
| Horizontal length of the boom | 61.1m |
| Vertical depth of the boom | 44.5m |
| Minimum unfolded height | 16.8m |
| First section arm length | 13735mm |
| First section arm corner | 89° |
| Second section arm length | 10615mm |
| Second section arm corner | 180° |
| Third section arm length | 10225mm |
| Third section arm corner | 180° |
| Fourth section arm length | 13583mm |
| Fourth quarter arm corner | 230° |
| Fifth section arm length | 8210mm |
| Fifth section arm corner | 180° |
| Sixth section arm length | 5832mm |
| Sixth section arm corner | 100° |
| Turntable rotation angle | ±360 th |
| Front leg spread width | 12444mm |
| Rear leg spread width | 15102mm |
| Pumping system parameters | |
| Concrete theoretical displacement low pressure | 180m³/h |
| Concrete theoretical displacement high pressure | 120m³/h |
| Theoretical pumping pressure is low pressure | 8.3Mpa |
| Theoretical pumping pressure high pressure | 12Mpa |
| The theoretical number of pumping is low pressure | 29 times/min |
| Theoretical pumping times high pressure | 19 times/min |
| Conveying cylinder inner diameter | 260mm |
| Conveying cylinder stroke | 1900mm |
| Hydraulic system | Open |
| System oil pressure | 32Mpa |
| Fuel tank volume | 880L |
| Water tank volume | 700L |
| Conveying pipe diameter | 125mm |
| End hose length | 3m |
| End hose diameter | 125mm |
| Chassis parameters | |
| Chassis brand | Volvo |
| Chassis model | FM540 104R B |
| Engine model | D13C540S EUV |
| Maximum net power of the engine | 397kW/1800rpmkW/rpm |
| Emission standards | Country V |
| Fuel tank volume | 415L |
| Displacement | 12.777L |
| Maximum speed | 85km/h |
