Hot Sales Large Span Precast Concrete Hollow Core Slab Machine

US$24,500.00-26,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
220-1200
Product Type
Particle Board Making Machine
Automatic Grade
Automatic
Power Source
Electric
Condition
New
Customized
Customized
Voltage
380V/50Hz
Feature
Prestressed
Advantage
Long Service
Using Material
Concrete
Transport Package
up to Customer
Specification
4.3x1.6x1.4m
Origin
Dezhou
Production Capacity
100 Sets Per Year

Product Description


Product Description
Brief Introduction

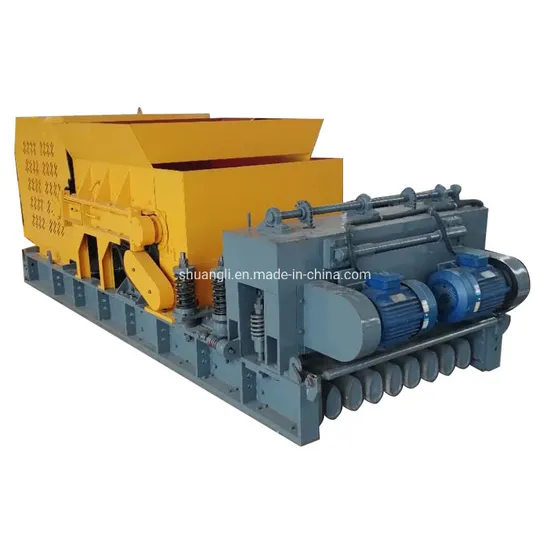

The Hollow core slab forming machine works on the concrete platform. Driven by the motor and transmitted throught the speed reducer. The movement of the slipper block pushed the loosen materials to the forming container from the hopper. With the continuous working of the vibrate plates. The material condensed by pushing and discharging of air. Press the concrete be hard and strong. The concrete be shape to smooth slabs. At the same time, the machine move forward to produce the long panel because the reactive force overcomes the frictional resistance. The slab can be cut to different lengths from 4.2m to 18m. Finshed products with strong load capacity, smooth surface and good flatness.
Due to the strong adaptability for field, low requirement to the supporting facilities, low cost of investment, our hollow slab forming machine has a broad market prospect.

Technical Details Parameter of concrete slab making machine
Thickness*
Width
Total
Power
(KW)
 productivity
(m/min)
 Max
Length
(m)
Maximum load
capacity
(kn/m2)
Steel
Diameter
 Number of
steel used
 Holes
100*600
 8
 1.2-1.4
 5.1
 8.11
 7mm
 5
 6
120*600
 8.5
 1.2-1.4
 6
 8.86
 7mm
 6
 5
150*600
 10.5
 1.2-1.4
 7.5
 10.24
 9.5mm
 5
 4
180*600
 10.5
 1.2-1.4
 9
 16.16
 12.7mm
 4
 3
100*900
 10
 1.2-1.4
 5.1
 9.76
 7mm
 10
 10
120*900
 14
 1.2-1.4
 6
 8.86
 7mm
 9
 8
150*900
 15
 1.2-1.4
 7.5
 10.24
 9.5mm
 10
 6
180*900
 15
 1.2-1.4
 9
 16.16
 12.7mm
 9
 5
200*900
 15
 1.2
 10.2
 13.22
 12.7mm
 7
 6 & peach
120*120
 15
 1.2-1.4
 6
 8.86
 7mm
 12
 11
150*1200
 15
 1.2-1.4
 7.5
 10.24
 9.5mm
 14
 13
180*1200
 19
 1-1.2
 9
 16.16
 12.7mm
 10
 11
200*1200
 22
 1-1.2
 10.2
 13.22
 12.7mm
 10
 8
250*900
 18.5
 1.2
 12.6
 11.1
 12.7mm
 7
 6 & peach
300*900
 22
 1.2
 15
 10.83
 12.7mm
 8
 5 & peach
220*1200
 24
 1-1.2
 10.5
 10.9
 12.7mm
 9
 8
250*1200
 26
 1-1.2
 12.6
 11.1
 12.7mm
 10
 8
300*1200
 33
 1-1.2
 15
 10.83
 12.7mm
 12
 6
We can design and manufacture specific model according to customers' specific requirement.


Production Process Production flow:
The machine works on the concrete platform, using pre-stressed steel wires as guidance, electric motor as power to push the concrete into concrete slabs while walking along the steel wires.
The continuously working of vibration plate will highly classify the concrete. Meanwhile, the reaction of pushing materials by slider will move the equipment go along with the steel wire overcoming the frictional resistance.
After nearly 48-hour maintenance, it can be cut into concrete slabs for use.


Our Services
1. Quick & fast spare parts
2. 6 months warranty for the equipment, low cost maintenance.
3. Free training for end users at local plant
4. Customizable with sizes and colors, OEM available
Company Information
Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at Ningjin County, Shandong Province, China.
1. Our products have a particularly good reputation in more than a dozen provinces and cities nationwide. The export has been increasing recent years, including India, Russia, Myanmar, Uzbekistan, etc.
2. We provide the stability of product quality, timely delivery, excellent after sale service, followed by customers' trust, wide market and good reputation.
