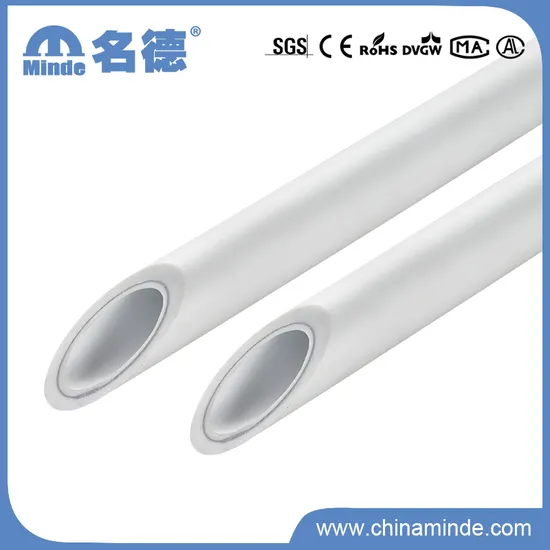

PPR-Al-PPR/PE/Pert Composite Pipe for Building Materials

Product Description

1,PPR
Minde PP-R pipes are made of Polypropylene Random ,which has comprehensive physical and chemical property ,as well as Hygiene property.
With the high-quality materials .Minde PP-R pipes meet the DIN8077/8078 standard .Depending on the pressure ,the pipes can be used in temperature up to 70ºCwith an extrapolated service life up to 50 years .
Advantage :
1st ,100% excellent raw materials ,safe and hygeian .
2nd,Drinking water pipeline system.
3rd,Recyclable ,benefit to the environment
4th, Resistance to abrasion and corrosion.
5th,Connected by heating ,leakage prohibit
6th,Long lifespan,Minimum 50 years life time at 60 or 70°C and 10 bar maximum pressure.

PPR-AL-PPR Plastic Composite Pipe PN20(-40ºC ~95ºC)	MDAL101	20x3.0	0.199	120	24.08
	MDAL102	25x3.25	0.280	100	28.20
	MDAL103	32x4.0	0.391	60	23.66
	MDAL104	40x5.0	0.649	40	26.16
	MDAL105	50x5.5	0.913	24	22.11
	MDAL106	63x7.0	1.397	16	22.55
	MDAL107	75x8.5	1.869	12	22.63
	MDAL108	90x	-	-	-
	MDAL109	110x	-	-	-
PPR-AL-PPR Plastic Composite Pipe PN25(-40ºC ~95ºC)	MDAL401	20x3.4	0.204	120	24.64
	MDAL402	25x4.2	0.310	100	31.20
	MDAL403	32x5.4	0.484	60	29.24
	MDAL404	40x6.7	0.725	40	29.20
	MDAL405	50x8.3	1.124	24	27.18
	MDAL406	63x10.0	1.698	16	27.37
	MDAL407	75x12.5	1.940	12	23.48
	MDAL408	90x15	-	-	-
	MDAL409	110x18.3	-	-	-

---
