Automatic Sheet Cutting Machine Supplier

Product Description

Automatic Sheet Cutting Machine supplier

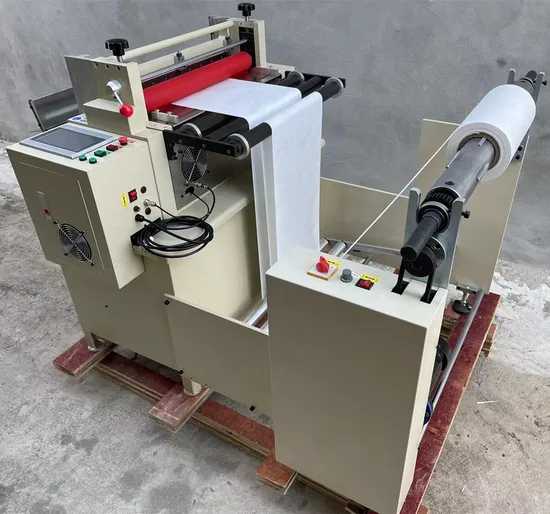

Machine photo

FUNCTIONAL CHARACTERSTICS
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting, equipped with automatic unwinding system and air shaft, which will be easy to load and unload. With photoelectric system to searching the marks , and with the electric static eliminator after cutting the sheets

Purpose
Sheet cutting for all kind paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form. To cut material from rolls to sheets.
Material can be cut as below

Main Technical Parameter

Item Number	LT-360	LT-500	LT-600	LT-700	LT-1000
Web Width	0-360mm	0-500mm	0-600mm	0-700mm	0-1000mm
Cutting length	0-9999.99mm	0-9999.99mm	0-9999.99mm	0-9999.99mm	0-9999.99mm
Cutting speed	100 cut/min	100 cut/min	100 cut/min	100 cut/min	100 cut/min
Cutting precision	0.03mm	0.03mm	0.03mm	0.03mm	0.03mm
Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Size	1100x1420x1280mm	1250x1420x1280mm	1350x1420x1280mm	1450x1420x1280mm	1730*1420x1280mm
Weight	320kg	380kg	400kg	420kg	450kg
Total Power	2.2kw	2.2kw	2.2kw	2.2kw	2.2kw

Features 1. The max width: 360, 500, 600, 700, 1000, customized
2. Tolerence: 0.05mm, Precision: 0.03mm
3. Material thickness: 0.5mm-20mm
4. Cutting speed: 100cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. Eye mark device for optional
9. An air shaft as the loading shaft;
10. Two accessories, static eliminator and conveyor belt, for you to choose
11. Automatic unwinding function;
12. Cutting length is accurate;
13. Operation is easy;
14. Waste rate is low;
15. Diverse functions satisfy your various requirements;
16. We offer superior-quality products and best service for you;
17. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
After-service
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Electric Box
Package

---
