Dual Target Head Vacuum Magnetron Sputtering Coater for Coating Dielectric Films

Product Description

Dual target head vacuum magnetron sputtering coater for coating dielectric films

Magnetron sputtering coating equipment is a special laboratory coating instrument developed by our company. The equipment can be equipped with DC power supply and RF power supply. The power ranges from 500W to 1000W. It can be used to prepare single or multilayer ferroelectric thin films, conductive films, alloy films, semiconductor films, ceramic films, dielectric films, optical films, etc.
Compared with the conventional plasma sputtering, magnetron sputtering has the advantages of high energy, high speed, high deposition rate and low sample temperature rise. The magnetron target is equipped with water-cooled interlayer. The water cooler can effectively take away heat and avoid heat accumulation on the target surface, so that the magnetron coating can work stably for a long time.
After compact design, the balance of volume and performance is realized, the appearance is beautiful and the function is comprehensive. The whole machine is controlled by touch screen and built-in one button coating program, which is easy to operate and is an ideal equipment for preparing thin films in laboratory.

Dual target magnetron sputtering coater parameters:

Power supply		AC220V,50Hz
Whole power		6KW
Ultimate vacuum		5x10-4Pa
Sample table parameters	Size	φ150mm
	Heat temp	500ºC max.
	Temp control	±1ºC
	Rotation speed	1-20rpm adjustable
Magnetron sputtering head parameters	Quantity	2x2"
	Cooling mode	Water cooled,flow 10L/min required
	Water chiller	10L/min Circulating water cooling
Vacuum chamber	Size	φ300mm x 340mm H
	Material	SUS
	Watch window	φ100mm
	Opening mode	open type, easy to replace target
Gas flow controller		One-channel,200sccm Ar;
Vacuum pump		A molecular pump system,pumping 600L/S
Quartz vibrating film thickness gauge		One set, resolution 0.10 angstrom
Sputter power source		DC power supply, 500W,Suitable for preparing metal films RF power supply, 500W,Suitable for non - metallic films
Operating mode		All-in-one computer operation
Overall Dimensions		1090mm x 900mm x 1250mm
Total weight		350kg

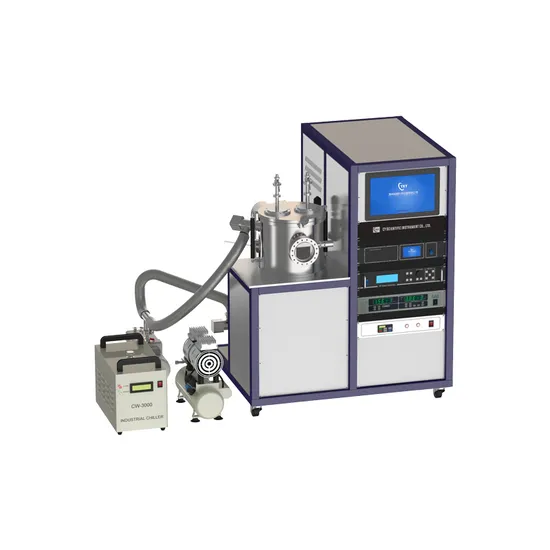

Display of the Compact Magnetron Plasma Sputtering Coater:
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
