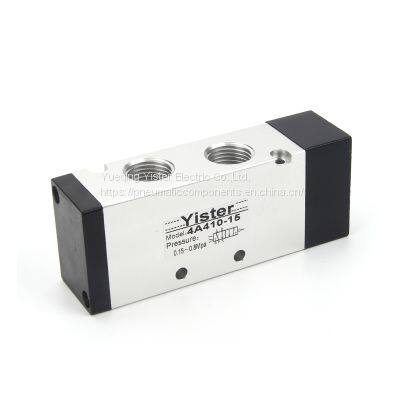

| Model | 4A410-08 | 4A420-08 | 4A430C-08 | 4A430E-08 | 4A430P-08 | ||
| Fluid | Air | ||||||
| Acting | Exterior control | ||||||
| Valve type | 5/2 way | 5/3 way | |||||
| Orifice size | 50mm2 | 30mm2 | |||||
| Lubrication | No required | ||||||
| Port size | In=out=Exhaust=G1/4” | In=out=Exhaust=G3/8” | |||||
| Protective class | IP65 | ||||||
| Pressure range | 0.15-0.8MPa | ||||||
| Proof pressure | 1.2MPa | ||||||
| Material of body | Aluminum Alloy | ||||||
| Temperature | -5℃~60℃ | ||||||
| Response speed | <0.05s | ||||||
