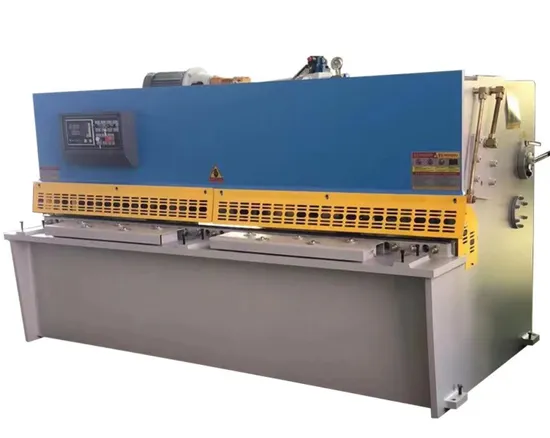

QC12y-25X4000 Hydraulic Shearing Machine/Plate Shear/Hydraulic Shearing Machine/Shear /Hydraulic Cutting Machine/CNC Machine

Product Description

Main functions and features
1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.2. Indicator-based adjustment of gap of blade is convenient and fast. 3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.4. The machine uses protection fence for safe operation. 5. Digital display device for size of back gauge and shearing times available.
Type

Model	Maximum shearing thickness mm	Maximum shearing width mm	Shearing angle mm	Sheet strength n/mm2	Backgauge station mm	Motor Power kw	Overall dimensions (L X W X H) mm	Weight kg
QC12Y-4x2500	4	2500	1'30'	450	600	4	3100x1405x1500	4300
QC12Y-4x3200	4	3200	1'30'	450	600	5.5	3800x1600x1620	5800
QC12Y-4x4000	4	4000	1'30'	450	600	5.5	4600x1700x1850	7500
QC12Y-6x2500	6	2500	1'30'	450	600	7.5	3100x1580x1550	5800
QC12Y-6x3200	6	3200	1'30'	450	600	7.5	3800x1600x1620	6800
QC12Y-6x4000	6	4000	1'30'	450	600	7.5	4600x1700x1850	8500
QC12Y-6x6000	6	6000	1'30'	450	600	7.5	6650x2500x1980	18000
QC12Y-8x2500	8	2500	1'30'	450	600	11	3140x1590x1570	5800
QC12Y-8x3200	8	3200	1'30'	450	600	11	3800x1750x1700	7500
QC12Y-8x4000	8	4000	1'30'	450	600	11	4600x1900x1780	9600
QC12Y-8x6000	8	6000	1'30'	450	600	11	6680x2550x1990	19800
QC12Y-12x2500	12	2500	1'40'	450	800	18.5	3150x1980x1850	9500
QC12Y-12x3200	12	3200	1'40'	450	800	18.5	3850x2040x1900	11500
QC12Y-12x4000	12	4000	1'40'	450	800	18.5	4650x2380x1980	14600
QC12Y-12x6000	12	6000	1'40'	450	800	18.5	6680x2470x2850	26000
QC12Y-16x2500	16	2500	2'20'	450	800	18.5	3180x2150x1880	11500
QC12Y-16x3200	16	3200	2'20'	450	800	18.5	3880x2450x2030	14700
QC12Y-16x4000	16	4000	2'30'	450	800	18.5	4680x2650x2100	19000
QC12Y-20x2500	20	2500	2'30'	450	1000	30	3180x2420x2020	14800
QC12Y-20x3200	20	3200	2'30'	450	1000	30	3880x2680x2150	19500
QC12Y-20x4000	20	4000	2'30'	450	1000	30	4680x3100x2250	25000
QC12Y-20x6000	20	6000	2'30'	450	1000	30	6750x2350x3600	56000
QC12Y-25x2500	25	2500	3'	450	1000	30	3280x2650x2300	19000
QC12Y-32x2500	32	2500	3'30'	450	1000	37	3300x2850x2450	25000

our advantages:
Certifications:
Our Company:
Hangyu Machine Tool Ltd. are professional in metal proccessing machine industry. Hangyu Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines. We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
Packaging and transportation:
FAQ: 1.Are you factory or foreign trade company?We are the manufacturer and do our own exporting team for more than 15 years' experience.2.How can we operate the machine?Our machines are very easy to operate.We have detailed installation and operating instructions attached.We could supply you the video of operating machine. 3.How long warranty can you provide?Our machine warranty is one year and life time service after sales.4. What are your payment terms?We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.

---
