Product Description
Product Description
Model Number:XQY-PS8-DC/3-SER
Wideband Frequency :DC-3GHz
Low Insertion Loss :≤23.5 dB
low VSWR:
Input Port VSWR:Typ.1.16 / Max.1.25
Output Port VSWR:Typ.1.18 / Max.1.30
Excellent Amplitude Balance:± 0.8dB
High Port-to-Port Isolation:Min.15dB
Input/Output connector type:SMA-Female
Customed frequency bands,connector type and optimized specifications are available.

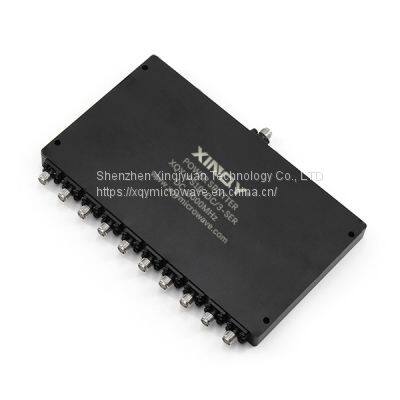

10 Way SMA Resistive Power Divider/Combiner DC-3GHz is an RF broadband, 10 way, power divider /combiner furnished with SMA female coaxial connectors.The broadband band frequency from DC - 3 GHz are covered with optimal performance. Max microwave input power levels up to 2 watts, combiner applications.Customed frequency bands,connector type and optimized specifications are available!
Electrical performance
The electrical performance of 10 Way SMA Resistive Power Divider/Combiner DC-3GHz is highlighted by 23.5 dB max insertion loss,15 dB min isolation, 1.25:1 max input VSWR and 1.30:1 max output VSWR. Equal power split and balance is displayed by 0.8 dB max amplitude balance and 15 degrees max phase balance. Please see Parameters tables for details. Wide-band or narrow-band depending on your needs,all our Xinqiyuan power dividers,power splitters,combiners are offered low VSWR and low insertion loss and high isolation over a large temperature range ( -35°C to +75°C).
>>
