Manual for X6332 Mini turret milling machine head

Product Description

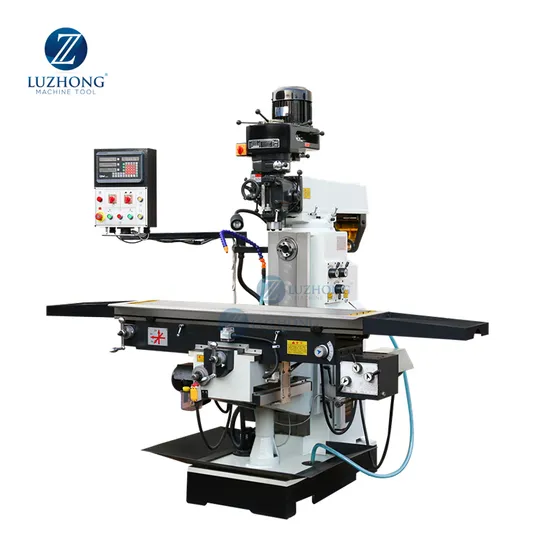

Turret Milling Machine X6332 Universal Milling Machine Product Description
Product Parameters
Product main technical specifications:

Specifications	Units	X6332
Table size	mm	1370×320
Table travel	mm	800/300/400
T slot(number-width-pitch)	mm	3-14-70
Spindle taper		ISO40 7:24
Spindle speed range	rpm	(V) 50HZ:65-4500 60HZ:80-5440 16 steps (H) 40-1300 12 steps
		Optional: variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	140-540
Distance between spindle axis and table surface	mm	0-400
Main motor power	kw	2.2(V)3(H)
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	2000
Overall dimension	mm	2200x1820x2350

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
