M1224ahd CNC Grinding Machine 3 Axis CNC Surface Grinding Machine

Product Description

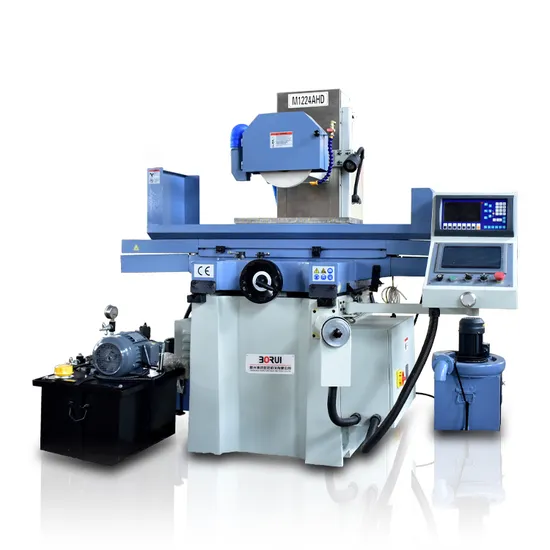

M1224AHD 3 axis Automatic CNC Surface Grinding Machine

Products Description. Application: * Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
* Well-designed control panel with two-way rotate structure, make the operator getting suitable operating position very easy, improve work efficiency
* The grinder is standard equipped with auto down feed AC servo motor, and controlled by PLC and HMI, to realize auto grinding, then to realize auto grinding.
* For the control panel is equipped with HML, by which the operator can easy operating on the machine to realize auto working.

Item		Unit	M1224AHD	M1224NC2	M1224NC3
Worktable size (L×W)		mm	600×300	600×300	600×300
Worktable traverse (L×W)		mm	640×320	640×320	640×320
Max. Grinding area (L×W)		mm	640×320	640×320	640×320
Number of T-slot		mm	1×14	1×14	1×14
Distance from worktable to spindle center		mm	490	490	490
Wheel size (OD×W×ID)		mm	300×30×75	300×30×75	300×30×75
Spindle speed		rpm	1440	1440	1440
Worktable longitudinal speed		m/min	3-20	3-20	3-20
Table horizontal feed	Continous (Variable speed)	mm/min	150	150	150
	Intermittent (stepless)	m/time	0-5	0-5	0-5
	Handwheel rotates	mm	2.5	2.5	2.5
	Hanwheel each grid	mm	0.02	0.02	0.02
Vertical feed	Handwheel rotates	mm	2	2	2
	Hanwheel each grid	mm	0.01	0.01	0.01
Vertical MPG feed	The MPG Rotates	mm	0.1/1/10	0.1/1/10	0.1/1/10
	MPG each grid	mm	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1
Spindle motor		kw	4	4	4
Worktable cross feed motor		kw	0.06	0.06	0.06
Worktable servo motor(Left-Right)		kw	---	---	0.75
Worktable servo motor(Front-Back)		kw	---	0.75	0.75
Vertical feed servo motor		kw	0.75	0.75	0.75
Cooling pump motor		kw	0.04	0.04	0.04
Hydraulic motor		kw	1.5	1.5	---
Working pressure		mpa	3	3	---
Fuel tank capacity		L	80	80	---
The maximum flow		L/min	18	18	---
Surface parallelism		mm	300/0.003	300/0.003	300/0.003
Surface roughness		um	Ra0.63	Ra0.63	Ra0.63
G.W./ N.W.		kg	1500/1400	1500/1400	1500/1400
Packing size (LxWxH)		cm	200×170×210	200×170×210	200×170×210

M1224AHD	M1224NC2	M1224NC3
Vertical: AC servo motor	Vertical: AC servo motor	Vertical: AC servo motor
Cross: Motor	Cross: AC servo motor	Cross: AC servo motor
Longitudinal: Hydraulic	Longitudinal: Hydraulic	Longitudinal: AC servo motor
Controller: GS-PLC Touch	Controller: GS-PLC Touch	Controller: GS-PLC Touch

Details Images.
Company Profile.
FAQ.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send
us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece
drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
