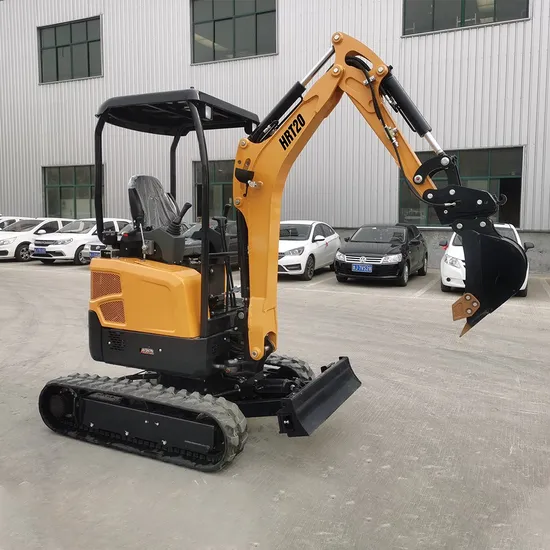

Highrich Mini Excavator with Good Performance and Good Condition

Product Description

Product Description
1. Versatility: Crawler excavators are highly versatile and can be used for a variety of tasks, including digging, lifting, demolition, and more. They are also suitable for a wide range of terrains, including uneven or slippery surfaces, making them ideal for construction projects of all kinds.
2. Stability: Thanks to their low center of gravity and wide tracks, crawler excavators provide exceptional stability. This allows operators to work more safely and efficiently, even on steep or uneven terrain.
3. Power and Performance: Crawler excavators are designed to deliver high levels of power and performance. They typically have more digging force and lifting capacity than other types of excavators, making them ideal for heavy-duty construction tasks.

4. Accessibility: Because of their low profile and compact size, crawler excavators can access tight spaces more easily than other types of construction equipment. This makes them ideal for use in urban areas or other confined spaces where maneuverability is essential.
5. Durability: Crawler excavators are built to last and can withstand harsh operating conditions, including extreme weather, rough terrain, and heavy loads. This means that they require less maintenance and downtime than other types of construction equipment.

1. Spacious cab:
The new and enlarged driver's cab features a new interior design, a spacious and bright view, and a user-friendly front shift mechanism.

2. Dynamical system:
The turbocharged exhaust engine has sufficient power reserve, and the highly compatible hydraulic system can fully utilize the power of the starting engine, saving more fuel.

3. Engine:
The excavators are equipped with diesel engines that typically have enough power to support digging, loading, and other work.

4. Tire and walking system:
The excavators use tire walking system, and the design and quality of tires are directly related to the stability and driving performance of the machine.

ENGINE
Emission Standard	Euro V /EPA
Make	KUBOTA
Model	D1105
Power /Rotation speed	14kw(19HP)@2000rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5/3.5km/h
Width of track shoe	230mm
Number of track shoe per side	38pcs
Number of upper roller per side	1
Number of bottom roller per side	3
PERFORMANCE PARAMETER
Standard Bucket capacity	0.07m³
Swing speed	9 rpm
Max. Grade ability	35°
Maximum Bucket digging force	18KN
Maximum Arm digging force	11KN
Hydraulic system pressure	21.5Mpa
Machine weight	2000kg
MACHINE SIZE
Overall dimension (L*W*H)	3555mm*1300mm*2290mm
Axle base(Track length on ground)	1230mm
Track gauge	760mm
Min.Ground clearance	150mm
Swing radius at tail	650mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2440mm
Maximum Digging depth	2400mm
Maximum Vertical digging depth	2025mm
Maximum Digging radius	4040mm
Minimum swing radius	1610mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	270mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°
