Heat Pump Dry Machinery Factory Low Cost Soybean Wheat Maize Drying Equipment Rice Corn Paddy Seed Diesel Drying Tower Electric Rice Maize Grain Dryer

Product Description

Heat Pump Dry Machinery Factory Low Cost Soybean Wheat Maize Drying Equipment Rice Corn Paddy Seed Diesel Drying Tower Electric Rice Maize Grain Dryer
Heat Pump Grain Dryer Features
Heat pump grain dryers are used for drying agricultural products: corn,maize,wheat,peanuts,oil seed,etc.
The drying process is to remove humidity and prevent the products from fungi or mildew,which provides the possibility of longer time storage.
· The grain dryer equipment has a simple structure; Small volume after dismantling,easy for transportation and movement.
· Equipped with online moisture meter,automatic moisture control to prevent over-drying and weight loss.
· Automatic temperature control system:the hot air temperature and air volume can be adjusted during drying process automatically to ensure the top drying quality.
· Highly automated operation with microcomputer control to reduce labor and improve working efficiency.
· Increased drying area and the drying speed is accelerated.
· Variety of heat sources can be applied,including biomass,fuel,gas,coal,etc.

Various Drying Equipments Comparison
Heating Type	Fuel Type	Energy Efficiency	Energy Consumption	Calorific Value	Unit Cost	Toal Cost	Safety Performance	Environment Effects	Labor Costs	Service Life
Diye Air Energy Heat Pump Dryer	electricity	300%	37kW·h/H	860Kcal/KG	$0.14/kW.h	$5.2/H	Safe&Reliable	None	Low	10-15 years
Electric heater	electricity	95%	107kW.h/H	860Kcal/KG	$0.14/kW.h	$15/H	Aging electric heating tube	None	High	5-8 years
Oil-fired Boiler	diesel	75%	14KG/H	10000Kcal/KG	$0.92/kW.h	$13/H	Oil leak/fires/explosion	Heavy Pollution	High	6-9 years
Coal Boiler	coal	42%	42KG/H	5000Kcal/KG	$0.14/kW.h	$5.9/H	Air leak/fires	Heavy Pollution	High	6-9 years
Gas Boiler	gas	75%	14Nm³	10000Kcal/KG	$0.61/kW.h	$8.5/H	Gas leak/fires/explosion	Medium Pollution	High	6-9 years

Heat Pump Grain Dryer Tower Drying Process
Technical Parameters of Heat Pump Dryers

Model number	DY-90ZH(30HP)	DY-120ZH(40HP)	DY-150ZH(50HP)	DY-180ZH(60HP)
Heating Capacity	105kw	140kw	175kw	210kw
Moisture Removal	90L/H	120L/H	150L/H	180L/H
Refrigerant	Mixed	Mixed	Mixed	Mixed
Rated Power	25.5kw	33kw	42kw	49.5kw
Rated Current	47.9A	62A	78.9A	93A
Maximum Power	45.5kw	63kw	82kw	99.5kw
Maximum Current	85.5A	118.4A	154A	187A
Voltage/Frequency	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Protection Against Electric Shock	Class I	Class I	Class I	Class I
Drying Chamber Temperature	35~80ºC	35~80ºC	35~80ºC	35~80ºC
Ambient Temperature	5~45ºC	5~45ºC	5~45ºC	5~45ºC
Maximum Exhaust Pressure	0.7/2.8MPa	0.7/2.8MPa	0.7/2.8MPa	0.7/2.8MPa
Noise	≤80dB	≤80dB	≤80dB	≤80dB
Standard Air volume	12500m³/H	17000m³/H	21000m³/H	25000m³/H
Net Weight	700kg	900kg	1100kg	1300kg
Dimensions(L*W*H)	2200*1200*2200mm	2200*1200*2200mm	2800*1200*2600mm	2800*1200*2600mm

Heat Pump Grain Dryer Tower Application

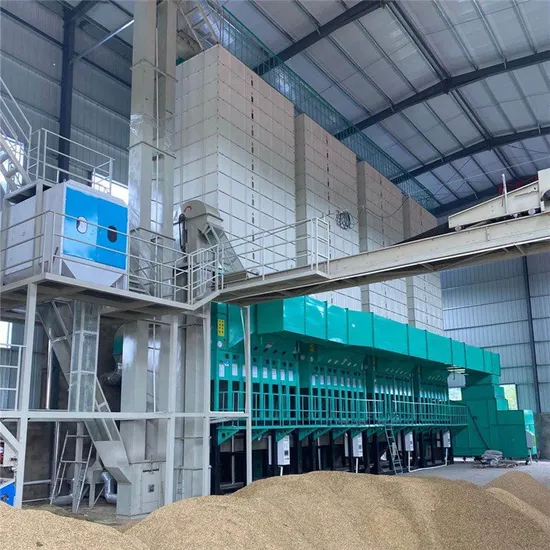

Real Projects
Product Workflow Chart
Packaging
Certifications
Our Services
A. Order Process
INQUIRY → QUOTATION → AGREEMENT → ORDER CONFIRM → PROFORMA INOICE OR CONTRACT → DOWN PAYMENT → PRODUCTION → BALANCE PAYMENT → DELIVERY → DOCUMENTS DESPATCH → GOODS COLLECTION → INSTALLATION → OPERATION → FEEDBACK
B. OEM & ODM are welcome;

C. Technical support for your installation,operation and maintenance.

D. One year's warranty, and you can pay for extended warranty.All life time technical support.

E. Spare parts and technical support at most economic prices after the warranty.
Company Profile
FAQ
------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer of heat pump drying machines with over 10 years industry experience.
Q: Where is your factory located?
A: Foshan City,which is near the Baiyun International Airport with less than 1 hour driving.
Q: How will you help us design the drying project?
A: Please provide the following information first: Materials to be dried,drying capacity,water content before and after drying,working time per day,etc.
We will recommend you the suitable drying solution based on your project requirements.
Q: Production time?
A: Normal production time is 20-30 days.
Q: Any warranty?
A: One year's warranty, and you can pay for extended warranty.All life time technical support. Spare parts and technical support at most economic prices after the warranty
Q: What kind of transportation do you offer?
A: Usually by sea shipping or according to customers' decision by train,land or air.
Q: What about the package of your products?
A: Seaworthy Wooden Packing with foam inside.
Q: Do you provide OEM service?
A: Yes. OEM & ODM are welcome.

---
