Dk-3 Vertical Automatic M32 380V Tapping Holes Wooden Box Gear Type Tapping Machine

US$2,500.00-3,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
DK-3
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Gear Type
Number of Shaft
0
Hole Diameter
M10-M32
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Sindle Travel
65mm
Motor
2.2kw
Swing
460mm
Spindle Taper
Mt3
Transport Package
Wooden
Specification
250kg
Trademark
CDK
Origin
China
HS Code
8459290000
Production Capacity
500/Month

Packaging & Delivery

Package Size
70.00cm * 80.00cm * 150.00cm
Package Gross Weight
60.000kg

Product Description

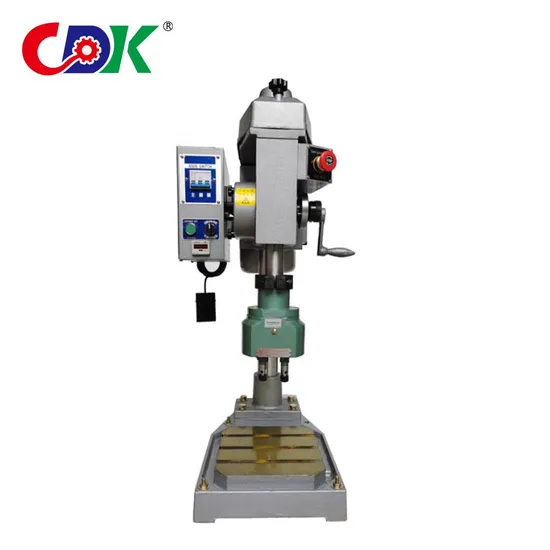

Dk-3 Vertical Automatic M32 380V Tapping Holes Wooden Box Gear Type Tapping Machine
1.Special design of positive and reverse motor,low inertia to prevent breakage of tapping.
2.The motor is equipped with an independent cooling fan to compel heat dissipation, which can be operated continuously and is durable.
3.The spindle can be operated in high speed and continuous cycle.Employees only need to put the processed products, which is easy, convenient, safe and efficient.
4.It is especially suitable for the processing of fine and blind holes in precise hardware such as watches, glasses, mobile phones and cameras.
5.It can be equipped with multi-axis tapping device to complete one-off multi-hole tapping and automatic tapping at the same time, which improves the production efficiency.
6.Solid column, tempered to eliminate stress, hard chromium plating, friction resistance, no rust.
