Multi-discs Bridge Type Stone Cutting Machine for Granite

Product Description

Production Description
1. It adopts a large-span bridge type and beam structure. The principal axis system adopts 2-stage deceleration mechanism, thus increasing the principal axis working torque.The up-down adopts a hydraulic system to carry out stable high-speed cutter feeding(saw requirements).The large block can be put directly on the ground,thus increasing the processing stability and saving machine maintenance costs greatly.

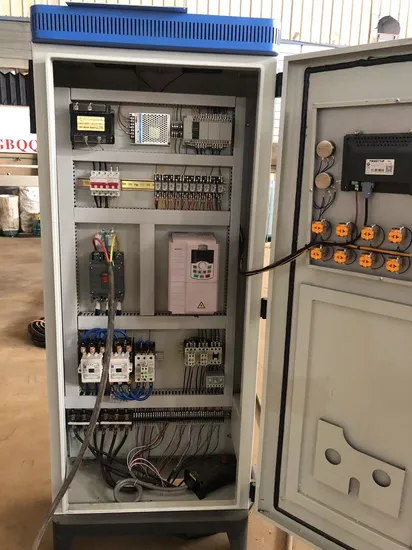

2. It uses PLC controlling system that can set up cutting size and achieve auto cutting.
3. This apparatus adopts diamond high-speed grinding technology to cut stone block into slabs through crossbeam displacement of cutter head and precise positioning of up-down limit position. It applies to cutting slabs of granite and marble blocks and stones of other specifications.
Technical Data

Name	Unit	GBQQJ-2500B
Max.blade diameter	mm	2500
Max.horizontal stroke	mm	3200
Max.up/down stroke	mm	1400
Slicing stroke	mm	2300
Main motor power	kw	55
Bridge length	mm	7480
Dia.of the four column	mm	190
Size of the bridge	mm	7480x450x550
