Xk6330 Good Quality Metal Milling Tools CNC Milling Machine Price List

Product Description

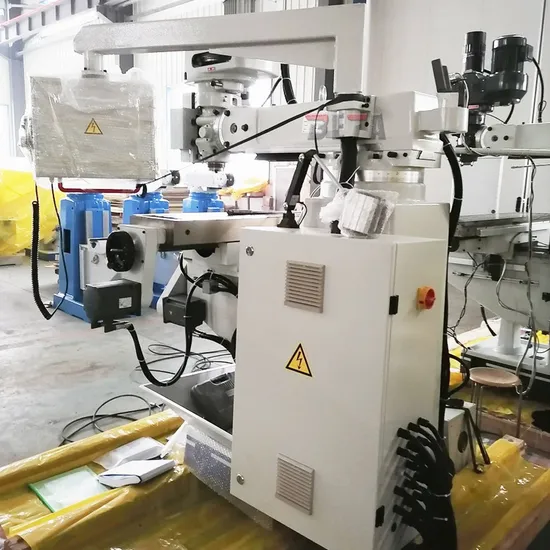

XK6330 Good quality metal milling tools CNC milling machine price list

Model		Unit	XK6325	XK6330
Table size		mm	254×1370	305×1370
T slots		n*mm	3×16	3×16
Table loading		kg	280	350
X axis(table longitudinal move)travel		mm	750	800
			850	900
Y axis(table cross move)travel		mm	400	360
Z axis(Quill move)travel		mm	103	103
X/Y/Z axis servo motor		kw	1	1
Knee vertical travel		mm	400	380
Ram travel		mm	470	500
Distance from spindle to table		mm	0-400	0-380
Spindle speed	Atandard:16 steps	rpm	50HZ:66-4540 60HZ:80-5440	50HZ:66-4540 60HZ:80-5440
	Optional:Variable		60-4200	60-3600
Spindle taper			Standard:R8/Optional:NT40	NT40
Motor power		HP	3	5
Head rotating	Swiveling	degree	90°	90°
	Tilting		45°	45°
CNC controller			GSK/Siemens	GSK/Siemens
Packing size		mm	1900×2000×2230	2000×2000×2250
G.W		kg	1400	1800

Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
