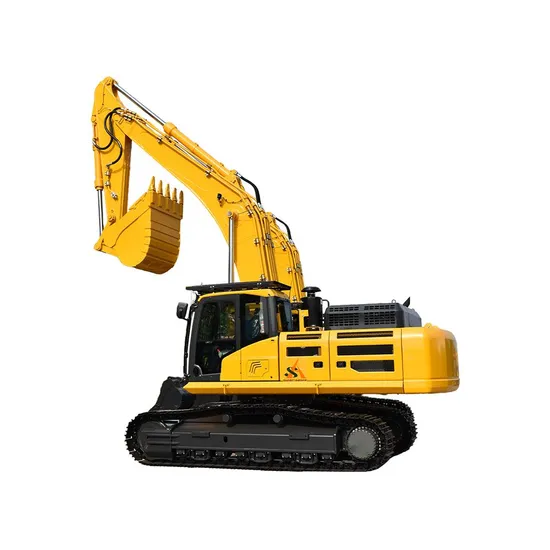

Super-Above 8ton Hydraulic Crawler Excavator 0.65cbm Bucket with High Quality Engine

Product Description

Product Description

Super-above 5Ton Hydraulic Crawler Excavator for Sale
Super-above hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported
to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators
and such characteristics of less fuel consumption and higher flexibility.
Performance Characteristics:
* Imported Cummis engine is powerful ,low noise,energy efficient.
* Advanced energy-saving Kawasaki hydraulic system provides good controllability and high efficiency;
* Customized Super-above exclusive engine can meet Euro stage IV Emission Standard.
2. Multiple applications
* Different boom, arm and bucket combinations can provide excellent all-around versatility.
* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience * Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function. * Integrated control panel and large display screen provide multiple information.
Optional configuration: break hammer and pipeline.quick coupler,rotary driller,hydraulic vibrating tamper are available.
Specification Super-above 6 ton mini excavator small digger.
SUPER-ABOVE 6tons excavator adopts a good engine excellent in environmental protection and energy saving.Moreover,
it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement
coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized
by the majority of users.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully
guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
* More energy efficient and environmental protection
Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consumption,
high operating efficiency, reliability and durability. Adopt large displacement main pump with large low and high pressure-withstanding value,
which can guarantee that the machine has smooth operation and high digging efficiency.
* More reliable and durable
Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure.
Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
* More comfortable and safe
Humanized detail design, all the control components inside the cab are arranged scientifically and reasonably according to ergonomics theory.
Cup holder, standby power, magazine bag, storage box and other humanized configurations are added to improve the convenience and comfort
of operation to the most extent.
Specification

Description		Unit	Parameter value
Operating weight		Kg	7730
Bucket capacity		m³	0.33
Engine	Model	/	4TNV98-ZCSXG
	No. of cylinders	/	4
	Output power	kw/rpm	44.8/2200
	torque/speed	N.m	225.7-245.8/1650
	Displacement	L	3.319
Main performance	Travel speed(H/L)	km/h	5.0/2.7
	Rotating speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	34.85
	Bucket digging force	kN	57
	Arm crowd force	kN	38
	Maximum traction	kN	68.3
	Main pump	/	/
Hydraulic system	Rated flow of main pump	L/min	176
	Pressure of prime valve	MPa	28
	Pressure of travel system	MPa	27.4
	Pressure of swing system	MPa	20.6
	Pressure of pilot system	MPa	3.5
Oil Capacity	Fuel tank capacity	L	137
	Hydraulic tank capacity	L	82
	Engine oil capacity	L	10
Appearance size	Overall length	mm	6215
	Overall width	mm	2280
	Overall height	mm	2690
	Width of platform	mm	2260
	Overall width of chassis	mm	2200
	Width of crawler	mm	450
	Length of wheel	mm	2195
	Crawler gauge	mm	1750
	Clearance under counterweight	mm	800
	Min. ground clearance	mm	373
	Dozer blade width/height	mm	2200/396
Working scope	Max. digging height	mm	7120
	Max. dumping height	mm	5160
	Max. digging depth	mm	4070
	Max. vertical wall digging depth	mm	3120
	Max. digging reach	mm	6245
	Min. swing radius	mm	1800
	Min. tail swing radius	mm	1865
	Max.dozer blade hoist height	mm	363
	Max. dozer blade digging depth	mm	346

Product Show
Features& Applications
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill
precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to
guarantee the rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering
constructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects.

---
