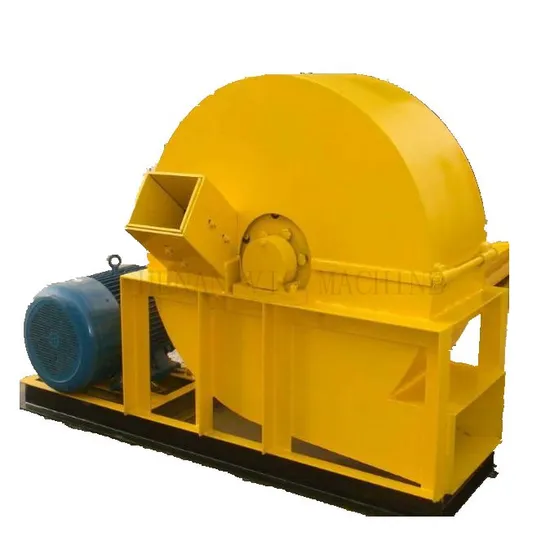

2TPH Efficient sawdust wood crusher wood grinding machine

Product Description

2TPH Efficient sawdust wood crusher wood grinding machine
Introduction:
1. The wood grinding machine can crush the big diameter tree branch such as pine, poplar wood, filed mushroom into pieces like sawdust one time.
The wood crusher machine wood grinding machine is simple structure, compact, space-saving footprint, good shaving quality, also is good for bamboo, grass, corn stalk, sorghum stalk and other fibrous materials.
2. Adopt vee belt transmitt, disk cutting and hammer crushing to sawdust, the granularity size can be adjusted by changing the sieve.
3. The wood crusher machine wood grinding machine is not only be driven by motor, but also can be diesel engine according to the need of clien.
Main data about the wood crusher wood grinding machine:

Model	9FH-500	9FH-600	9FH-700	9FH-800	9FH-900	9FH-1000
Capacity(kg/h)	300	600	800	1500	3000	4000
Cutter dia(mm)	500	600	700	800	900	1000
Cutter pcs	4	4	6	6	6	6
Cutter length(mm)	100	150	200	250	300	350
Feeding dia(mm)	180x200	200x200	200x250	250x300	300x400	400x500
Main shaft speed(min/h)	2600	2500	2600	2300	2000	2000
Power(kw)	11	15	22	37	45	55
Size(m)	1.2x0.85x0.9	1.5x1.0x1.1	1.6x1.0x1.2	2.1x1.1x1.3	2.3x1.1x1.4	2.6x1.1x1.5

More pictures and detais about the wood crusher wood grinding machine:
Wood crusher wood grinding machine and final product:
Parts
Our factory

---
