1200mm Color Coated Painted PPGI Steel Coil Colour Prepainted Galvanized Steel Coil for Metal Roofing Sheet

Product Description

Product Description

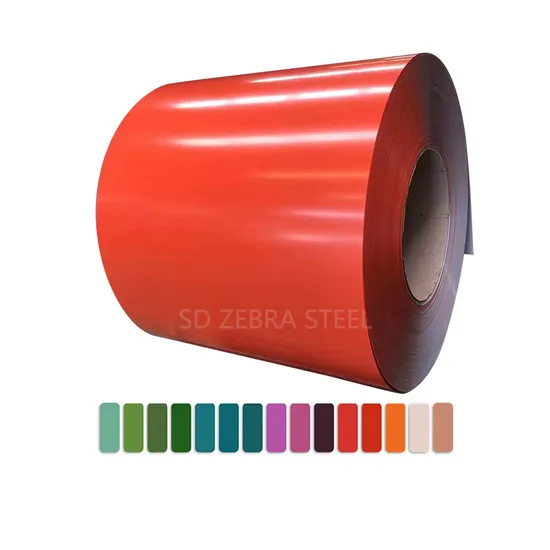

Prepainted Galvanized Steel Coil (PPGI) China ManufactureNo cutting corners on zinc weight and paint thickness.
Prepainted Galvanized Steel Coil is a paint applied to the surface of the steel coil after it has been galvanized. Such coatings include polyester, silicon-modified polyester, polyvinylidene fluoride (PVDF), etc.

Product Name	Prepainted Galvanized Steel Coil (PPGI Steel Coil)
Techinical Standard:	JIS G3302-1998, EN10142/10137, ASTM A653
Grade	SGCC,DX51D/DX52D
Hardness:	Full hard (G550), soft (G350)
Base metal	Galvanized, galvalume, cold rolled steel
Thickness	0.12-2.0mm(0.16-0.8mm is the most advantage thickness)
Width	600mm---1250mm
painting brand	NIPPON, KCC , Akzo-Nobel, Beckers painting, Aoboli
Type of coating	PE , SMP, PVDF
Zinc coating	30-275g/m2
Top painting	10-30 micron
Back painting	5-30 micron
Color	According to RAL standard or your sampes
ID Coil	508mm / 610mm
Coil weight	4--8MT
Package	Properly packed for ocean freight exportation in 20'' containers
Application	Industrial panels, roofing and siding for painting / automobile
MOQ	5Ton
Price terms	FOB,CFR,CIF
Payment terms	30%TT in advance+70% TT or irrevocable 70%L/C at sight
Delivery time	30--35 days after recepit of 20% TT
Remarks	Insurance is all risks
	MTC will be handed on with shipping documents
	We accept SGS certificatation test

Coating and Thickness
We only produce high quality products and never cut corners. Aksu international brand paint is used, with uniform thickness,strong adhesion, and film error of plus or minus 5 μ M. No peeling, good corrosion resistance, uniform zinc layer thickness,strong adhesion. No peeling, good corrosion resistance, no corrosion for 20 years, the surface is very smooth,clean,symmetrical and beautiful.
Sectional
Base Metal (Galvanized Steel): The core of the coil is galvanized steel, which is steel coated with a layer of zinc to provide corrosion resistance. Chemical Treatment Layer: This layer is applied to the galvanized steel to improve adhesion of the subsequent coatings and to enhance corrosion resistance.
Primer Coating: A primer coating is applied on top of the chemical treatment layer. This layer further enhances adhesion and provides an additional barrier against corrosion.
Topcoat (Finish Coat): The topcoat is a colored paint layer that provides both aesthetic appeal and additional protection.
Back Coat (Optional): On the underside of the coil, a back coat may be applied.
RAL Color Customized
Support all color cards and color codes, or customize according to samples
Support sample customization
Color coated steel sheet has multiple surface types to choose

	Smooth-Bright The surface is smooth and has a mirror effect, presenting a bright luster
	Matt The surface does not have a significant mirror effect, presenting a soft luster
	Pattern-Wooden.etc The surface is embossed to present various patterns and textures, such as mesh, wood grain, stone grain, etc
	Wrinkle Surface roughness, similar to sandpaper, diffuse reflection of light.

Color Prepainted Steel Coil Possible Coating Options
Polyester coating (PE): Good adhesion, rich colors, low cost, and is suitable for various environments.
High Durability Coating (HDP): With excellent color retention and UV resistance, it is suitable for harsh environments.
Silicon modified coating (SMP): Good hardness, wear resistance, and heat resistance, and is suitable for high temperature environments.
Fluorocarbon coating (PVDF): With excellent color retention and UV resistance, it is suitable for highly corrosive environments. Product Test
Packaging & Shipping

Coil and Strip Packing 1:Metal protective ring2:Waterproof wrapping paper3:Buckle4:Metal band	Shipping and Port1:Wooden pallets2:Wooden frames for fixing3:Steel wire ropes for fixing steel coils4:Loading Port: Tianjin/Qingdao/Shanghai Port.

Company Profile
Shandong Zebra Steel Material Co. ,Ltd.
Main steel materials,since 2008, Located in jinan city.China , which main products are Cold rolled steel , Gl , GL, PPGl, PPGL, Corrugated roofing sheet, Color coated steel , Stainless steel, Carbon steel and Steel pipe.
Factories and production lines
Covering an area of 226,000m2, Zebra steel Owned 11 production lines, 3 of Cold-roling steel production lines , 2 of Galvanized steel and Aluminized zinc silicon production lines , color coated production line steel pickling prqduction lines and stainless steel processing workshop.Product Parameters
FAQ
Q:HS Code
A:The HS Code for prepainted galvanized steel coil(PPGI Coil) with a thickness of <1.5mm and a width of 600mm and above is 721070.
Q:The price of ppgi coilA:The price of ppgi coils varies depending onthe raw material of steel, the weight of zinc of the galvanized substrate used, the type of coatings used, the thickness of the top coat and back coat, the width and thickness of the steel coil to influence the price. Q:The coating thicknessA:The top finish coating is larger than 20μm to prevent the intrusion of corrosive media. Due to the different anti-corrosion mechanisms of primer and finish coating, not only the total coating thickness should be guaranteed, but also the thickness of primer (>5μm) and finish coating (>15μm). PVDF pre-painted steel coil requires a thicker coating. It provides a longer service life. The requirements for the backside paint coating depend on the application, and the sandwich panel only requires a layer of primer. The formed steel plate requires two coats. The thickness is at least greater than 10 μm. Q:Does Pre-painted Galvanized Coil Have a Protective Film?A:Our plastic film thickness is 30 microns, 40 microns, 50 microns, 60 microns, and 80 microns.Or customized. Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be
destroyed.weaccept the third party inspection absolutely. Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

---
