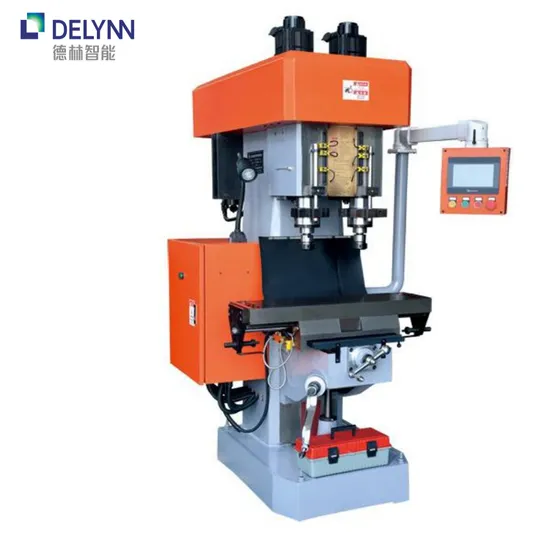

Vertical Double-Spindle Compound Machine Tool for Batch Part Processing

Product Description

Product Description
1.Technical Advantages:ZS4150*2:♦ Applicable to machine component processing, drilling, tapping at one time with high efficiency. ♦ The slide base of working table uses cylinder with buffer and pneumatic clamping, less vibration and clamping fast.♦ The better effect of our slide base using high-frequency quenching with lubrication.♦ It can achieve the function of Double-drilling and Double-tapping with the YD-KT126*2 processor.♦ The total quantities of processing products can reflect on the LCD control Panel. ZS4150*2-II:
♦ The tapping axis is controlled by servo control and the precision is high.
♦ Instead of thread and screw, it is programmable differential tapping with tapping distance adjustable.
♦ Reducing manual operation with high efficiency and accuracy automatic operation, a person can operate many machines at the same time.
♦ Using PLC programmable controller as electrical system , suitable for components processing, drilling,tapping at the same time.
♦ The guide track has through ultrasonic frequency quenching, and by using cylinder with buffer and pneumatic clamping in the slide base of working table, it has less vibration and function of fast install & disassemble. 2.Technical Parameters

Parameter Items	Unit	Parameter
		ZS4150*2
Spindles Number	unit	2
Worktable Size	mm	800*230
Worktable Stroke Length	mm	240
Spindle Forms	/	MT4
Spindle Power	kw	3KW/6P
Spindle Rotating Speed	r/min	(L)675 (R)1000,67
Spindle Outer Diameter	mm	Φ90
Machine Weight	kg	1200
Machine Dimensions	mm	1390*1110*1750
Control System	PLC

Parameter Items	Unit	Parameter
		ZS4150*2-II
Spindles Number	unit	2
Worktable Size	mm	800*230
Worktable Stroke Length	mm	240
Worktable Power	kw	(servo motor)1kw
Spindle Forms	/	MT4
Spindle Power	kw	(servo motor)2.3kw
Spindle Rotating Speed	r/min	(L)50-675 (R)1000/675
Spindle Outer Diameter	mm	Φ90
Machine Weight	kg	1200
Machine Dimensions	mm	1390*1110*1750
Control System	PLC

3.Production Workshop
4.Product Samples
Packaging & Shipping
Company Profile
Our Services & Strength 1) Over 20 years experience in brass casting equipment. 2) First and most accepted China brand.
3) Most competitive price and quality.
4) Auto working, easy operation, save labour.
5) Short delivery time.
6) Instant aftersale service on line.
7) Import and Export License.

FAQ
Q 1: Are you trading company or manufacture?
A: Yeah,Definitely We are manufacture
Q 2: Where is your factory Located?
A,Our factory is located in Quanzhou,Nanan City,Very closed to Xiamen Airport,it will take almost 1hours to the airport.

Q 3: When Can I have your price?
A:We are glad to offer you the best price, but firstly,please provide us the information of your material,with the detailed technical parameter, then we can recomment you the best suitable machine.

Q 4: How do we know how to operate and maintain the machine?
A: We will provide you the operation instruction in English Version,If you need,we will send our technician to your place and help you to train your people.

Q 5: How do you guarantee the quality?
A:That's a good questions,We are manufacture,we have our own factory,We have high repulation in China,You can check your friends or people in this line in china,they know Delin Machine.

---
