China Furniture Panel Processing Machinery Manufacturer / Ryzor Edge Banding Machine / Branded Edgebander Supplier

Product Description

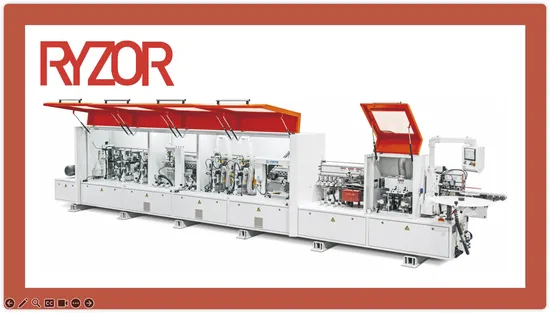

PE-683G Double Glue Pot Fully Automatic Linear Edge banding Machine

Product Characteristics: This machine is primarily used for edge banding of furniture panels. The edge banding machines currently used by furniture manufacturers are equipped with dual glue pot edging units, enabling simultaneous heating of two different colors of hot melt glue, which can be quickly and automatically switched according to edge banding needs, meeting the requirements of customized production. Additionally, the machine can be optionally equipped with pneumatic point-adjustable trimming, allowing for quick switching between thin and thick edge banding tapes. Its characteristics include automation, high efficiency, high precision, and aesthetic quality. It has already been widely applied in domestic panel furniture production companies. There are also more optional enhancements available. For details, refer to the functional group processing workflow.

Main Operational Functions: 1. Pre-Spray Device: Applies a separating agent. 2. Pre-Milling: Prepares the panel edge. 3. Lower Glue Pot with Tape Feeding and Gluing: Applies glue and attaches edge banding (optional upgrades to include upper glue pot, quick melt glue, PUR, or laser edge banding). 4. High-Speed End Trimming: Quickly trims panel ends. 5. Manual Rough Trimming: Initial edge trimming. 6. Manual Fine Trimming: Secondary edge trimming. 7. Profiling Tracking: Ensures accurate edge profiling. 8. Manual Scraping: Initial edge scraping. 9. Flexible Flat Scraping: Provides a smooth finish. 10. Post-Spray Device: Applies a cleaning agent. 11. Polishing 1 and Polishing 2: Dual polishing stages for a high-quality finish.

Technical parameters/model PE-683G
Dimensions (mm)	8350*950*1620	plate thickness	10-60mm
power	24.8KW	Sheet length	≥150mm
Processing speed	15-23/min	Sheet width	≥60mm
Edge banding thickness	0.4-3mm	Minimum board size (mm)	300(L)*60(W),150(L)*150(w)
Edge banding width	12-65mm

Guangdong Rongyao Future Technology Co., Ltd. is an advanced enterprise specializing in the production and export of woodworking machinery. The company was established in 2008 and has a history of 16 years. We offer a variety of services, not only providing customers with high-quality woodworking machinery, but also providing sufficient maintenance, spare parts, and technical consultation. We are committed to providing one-stop services for factory production and have developed a series of panel furniture equipment, such as a full range of edge banding machines (including pressure wheel edge banding machines, high-speed rail edge banding machines, and intelligent flexible edge banding machines), computerized panel saws, CNC drilling machines, CNC cutting machines, and automated production line equipment. Our machines have been sold to more than 20 countries around the world, such as Russia, South Korea, Spain, the United States, Malaysia, Italy, Africa, Brazil, Australia, the United Kingdom, Germany, Thailand, Canada, Portugal, Türkiye, Ukraine, Iran, Vietnam, Dubai, Egypt, and so on, and have received unanimous praise and support from customers.

Our machines have been sold to more than 20 countries around the world, such as Russia, South Korea, Spain, the United States, Malaysia, Italy, Africa, Brazil, Australia, the United Kingdom, Germany, Thailand, Canada, Portugal, Türkiye, Ukraine, Iran, Vietnam, Dubai, Egypt, etc., and have received unanimous praise and support from customers.

Q1: Are you a manufacturer?
A1: Yes. We have 16 years of production and export experience.
Q2: Regarding MOQ
A2:1 set, we are OEM, and I will give you a more competitive price than the market.
Q3: Can you customize this machine?
A3: Of course, our machines can be customized according to the buyer's requirements.
Q4: How do I place an order?
A4: Please tell me your question and I will do my best to help you.
Q5: If I want cheaper quality, can you produce it?
A5: Yes, just send us your detailed quality information, such as materials, which parts are cheaper, etc. We will calculate and determine the price based on your requirements.
Q6: If the quantity is large, what is the good price?
A6: Please send us detailed inquiry information, such as product number, quantity of each product, quality requirements, logo, payment terms, transportation method, unloading location, etc. We will provide you with an accurate quotation as soon as possible.

---
