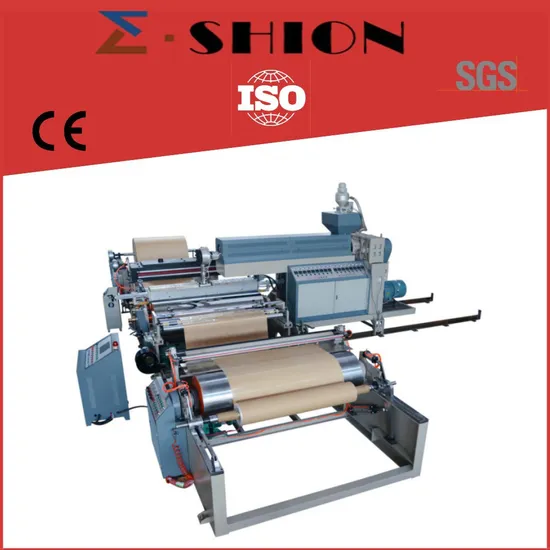

Extrusion Laminating Coating Machine

Product Description

NONWOVEN LAMINATING COMPOUNDING MACHINE
Non Woven Fabric Laminating Machine
Machine brief description
Using Lamination Grade material as LDPE and PP, this machine can laminate not only on Non-Woven and Woven Fabric, but also can do lamination work on Paper base product.
Highlight
Machine can do stable coating at speed 80-120M/Min. Automatic Tension and EPC, Reduce Labor cost. Special Custermized Options, allow clients to modify what is needed. Product parameters

Model	LM1300/80	LM1600/90
Screw Dia	φ80 mm	φ90 mm
L/D	33:1	33:1
Coating Width	600-1200mm	900-1500mm
Coating Thickness	0.01-0.10 mm	0.01-0.10 mm
Designed Line Speed	120 m/min	120 m/min
Max Extrusion	150kg/h	180kg/h
Main Motor	30 kw	37 kw
Total Power	77kw	98kw
Main Un-Winder	≤φ1200 mm	≤φ1200 mm
2nd Un-Winder	≤φ500 mm	≤φ500 mm
Winder	≤φ1200 mm	≤φ1200 mm
Weight	6000kg	7000kg
Overal Demension	7400×7000×3200 mm	7400×7500×3200 mm
Power Supply	380V/3P/4L/50Hz	380V/3P/4L/50Hz

MACHINE DETAILS :
MACHINES SHOW :
You maybe need slitting machine. Please click here
https://e-shionmachine.en.made-in-china.com/product/hOynqrFxlzWd/China-PP-Non-Woven-PE-BOPP-Plastic-Film-Slitting-Machine.html
Our office :
Our exhibition :
Our certificate and loading show :
FAQ :

---
