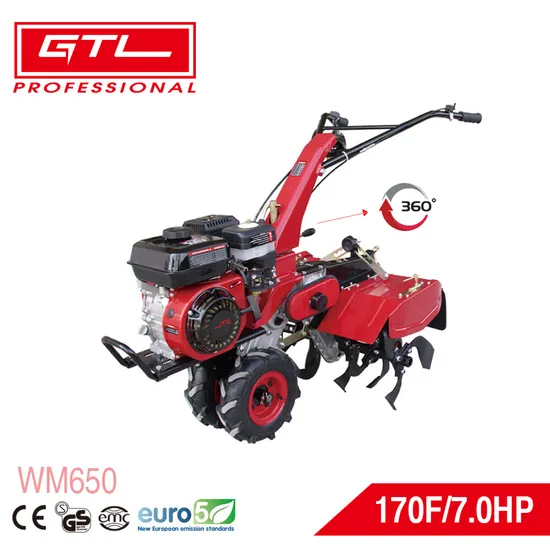

Multi Function Agricultural Tiller Machine Gasoline Rotary Tiller (WM650)

US$369.00-410.00 50 Pieces (MOQ)

Basic Info.

Model NO.
WM650
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Red
Warranty
1 Year
Engine Model
Wm170f-1/Wm177f/P-3
Max Power(Kw)
4.3/3600(7HP),5.5/3600(9HP)
Rated Power (Kw)
4/3600,5/3600
Rated Speed (R/Min)
1800
Dimension (L×w×h)mm
11480×650×980
Transmission Way
Gear, Chain Transmission
Connection Way
Connection Way
Turning Radi(mm)
180
Quantity of Blades (PCS)
18
Tilling Depth (Cm)
≥10
Tilling Width (Cm)
24-65
Walking Speed (M/S)
Fast Gear(Front): 1.34slow Gear(Front): 0.71
Others
Gasoline Rotary Tiller
Transport Package
Carton Box
Specification
4.3/3600(7HP), 5.5/3600(9HP)
Trademark
GTL
Origin
China
Production Capacity
5000 Pieces/Year

Product Description

Multi function Agricultural Tiller Machine Gasoline Rotary Tiller (WM650)
Product Description
1. 4-Cycle, 170F OHV engine provides the necessary strength for tilling your soil
2. With a 290-320cm tilling width, self-sharpening steel tines plow while maintaining blade edge
3. 13 in. Heavy duty pneumatic tires easily maneuver through tough landscapes
4. Manual recoil easy start fuel delivery system
5. Can travel forward and in reverse, allowing for maximum mobility in a variety of conditionsWith different additional tools and equipments, WM650 can do following works: ditching, earth backing, weeding, scrunching, spraying, reaping , hilling, tilling, ploughing, film mulching (round) and ridging.
Product Parameters
WM650 Engine model WM170F-2-L/P
Max power hp(kw)rpm 7(5.1)/1800
Body size(mm) 1600×750×880
Tilling scope(mm) ditching width:290~320
tilling width:420~650
Tilling depth(mm) ≥100mm
Gear shifting walking Gearbox:forward(H,L),0,reverse(H,L)
Tilling Gearbox : high drive ratio(H,L)
low drive ratio (H,L)
Driving model gear+belt
Transmission oil capacity(L) walking gearbox:1.5
Tilling Gearbox:1.2
Accessories 5pcs ditching blade, 3pcs*3 group rotary blade, 1 set of 30mm iron wheel, 1 set of 3.5-6 rubber tyre
Certification CE, EMC,EURO V
