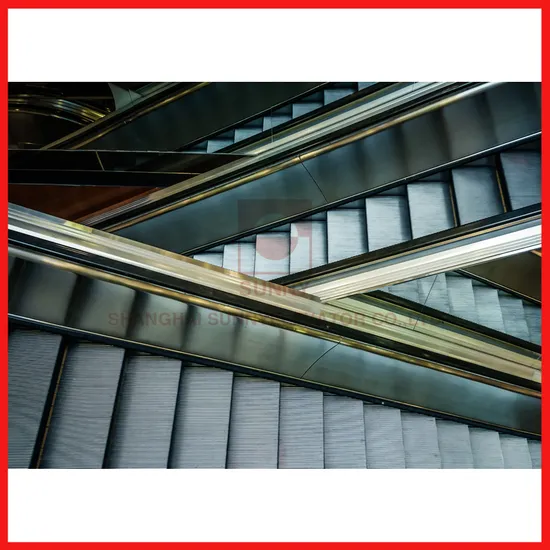

Outdoor/Indoor Escalator with Good Quality for Large Passenger Elevator

Product Description

Outdoor/Indoor Escalator with Good Quality for Large Passenger Elevator

Motor capacity (KW)	Traveling height (ladder width) 1000		Traveling height (ladder width) 800		Traveling height (ladder width) 600
	1000-3500	5.5	1000-3700	5.5	1000-3900	5.5
	3600-4700	7.5	3800-4900	7.5	4000-5100	7.5
	4800-5000	B	5000-5200	B	5200-5400	B
	5100-5900	11	5300-5900	11	5500-5900	11
1000	1000	1158	1238	1600	1660	2310
800	800	958	1038	1400	1460	2110
600	600	758	838	1200	1260	1910
Step width	A	B	C	D	E	F

Model	Traveling height (mm)	Net weight KN	Bearing	Capacity	Transporation dimension
			R1 KN	R2 KN	h	I
(600)-30 Speed:0.5m/s	3000	54	43	39	2850	10180
	3500	57	46	41	2890	11030
	4000	60	49	44	2920	11890
	4500	64	52	46	2940	12750
	5000	67	54	49	2970	13610
	5500	70	57	51	2980	14470
	6000	73	60	54	3000	15330
(800)-30 Speed:0.5m/s	3000	56	49	44	2850	10180
	3500	60	52	47	2890	11030
	4000	63	56	50	2920	11890
	4500	66	59	53	2940	12750
	5500	70	62	56	2970	13610
	5500	73	65	59	2980	14470
	6000	78	69	61	3000	15330
(1000)-30 Speed:0.5m/s	3000	60	56	50	2850	10180
	3500	64	60	53	2890	11030
	4000	67	64	57	2920	11890
	4500	71	67	60	2940	12750
	5000	74	71	64	2970	13810
	5500	82	77	69	2980	14470
	6000	85	81	72	3000	15330

Instruction
1.When the escalator to be installed above the second floor. Don't have a pit.. Layout drawing must be
matched between up and down
2.Keep the sufficient space at both EXIT and EXTRANCE of escalator. The width must be less than
1238. The depth from handrail bell revered end to the front obstacle must be not less than 2500.
3.Space between handrail belt of escalator and obstacle must be not less than 500.
4.Motor AC 380 V 50 HZ. See in the table.
5.By the user to provide a grounding resistance of less than 4 ohms.
6.Provide by user to the main switch of the power requirements of 3phases 5 wires.
7. All the dimensions are measured by MM.
35° Escalator construction layout drawing
Our factory
Delivery
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience for exporting all kinds of elevator & elevator parts to 80 countries all over the world.

---
