3535 SMD LED 36 Points Grow Light Module with Heatsink 300X80X40mm

Product Description

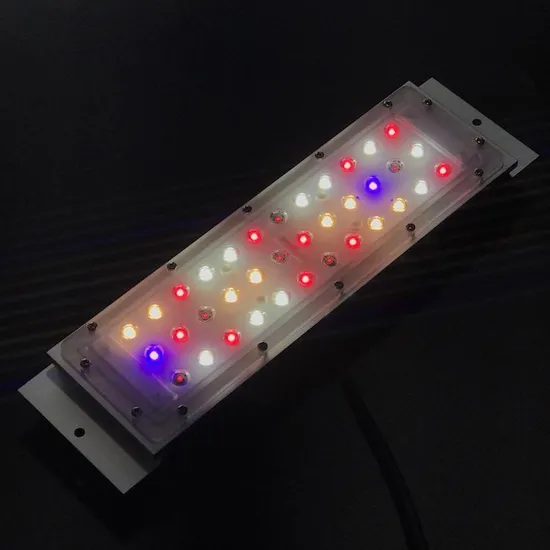

3535 SMD LED 36 POINTS GROW LIGHT MODULE with Heatsink 300x80x40mm

Model	SUN-LD3X12-3030-90x90
Beam angle	90x90 DEGREE
Other angle	70x140 egree
Lens size	250X74MM
LED CHIP	welding 6pcs 730nm leds, 10pcs 660nm leds, 2pcs 430nm bule led,10pcs XTE CCT 6500K CRI 80 led, 8pcs XTE CCT 3000K CRI 80 leds
Heatsink 30-50w	300*80*40mm
Dense array of 28 LED	Small footprint, high light output
Materical for lens	Optical grade PC
Lens transmittance	93%
Work temperature	-30-60 degree
Samples	Available
Delivery time	5-7 work days for 1-1000

Dimensions of 36W LED lens:



Features :
This SKD 36 LED LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 32W,64W,96W and so on . It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures. Industry-leading thermal management utilizing technology Operating temperature range: from 35 Celsius degree to 70 Celsius degree. The LED retrofit kits contain no any mercury or lead. Does not produce UV rays that harm people's eyes. Directional light means no light pollution, dark sky compliance. Optic lenses are available for projects that need smaller beam angles, like 30/60/90/90x120 degree, 90x90 degree/90 degree/87x134 degree/78x132 degree/120 degree/70x155 degree and so on. We can accordering your requires to design new board.

Payment Terms	T/T,Western Union, Paypal, MoneyGram
Minimum Order	1pc
Lead Time Delivery Time	5-7 days,it based on your quantity
Sample Available	Yes
Delivery ways	DHL/Fedex/UPS express, Sea or air shipping for your choice
Packing Info	carton package

Assembled picture:

Why choosing us - SUNSHINEOPTO ?
1. About 14 years specializing in High Power LED modules.
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components.
3. Strict process and quality control.
4. Good raw materials used in production.
5. Strong design and production capability.

---
