Product Description
Product Description

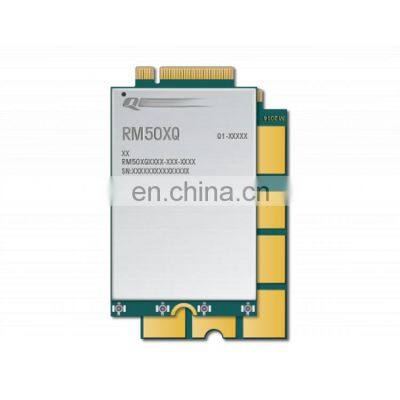

DescriptionOverview● The RM50xQ is a series of 5G sub-6GHz M.2 modules measuring 52.0mm × 30.0mm × 2.3mm which meets the 3GPP Release 15 specification and is optimized for industrial and commercial IoT and eMBB applications. It supports both standalone (SA) and non-standalone (NSA) modes and delivers maximum downlink rates of 2.5Gbps and maximum uplink rates of 900Mbps. It is compatible with Quctel’s LTE-A category 6 module EM06, category 12 modules EM12 & EM120R-GL, and category 16 module EM160R-GL , enabling customers to migrate from LTE-A to 5G. The series consists of five variants to meet varied geographical requirements, which can be compared via the table above.● The RM50xQ supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS receiver greatly simplifies product design and makes positioning capabilities quicker and more accurate. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, Android) allow the series to serve a wide range of IoT applications including business routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.Key Features● Supports both NSA and SA modes● Compatible with Quctel’s LTE-A Cat 6 EM06, Cat 12 EM12 & EM120R-GL, and Cat 16 EM160R-GL● Supports Qualcomm® IZat™ location technology Gen9C Lite● Supports MIMO● USB 3.1 / PCIe 3.0 high speed interface● Quctel Enhanced AT Commands● Multi-constellation GNSS receiver available● Feature refinements: DFOTA and VoLTE (optional)RM500Q-GLRM500Q-AERM502Q-AERM502Q-GLRM505Q-AEREGION / OPERATORGlobal (Except for United States)Global (Except for China)Global (Except for China)Global (except for US/ China/ Japan)Global (Except for China)FREQUENCY BANDS5G NR3GPP Release 15 NSA/SA operation, Sub-6 GHz3GPP Release 15 NSA/SA operation, Sub-6 GHz3GPP Release 15 NSA/SA operation, Sub-6 GHz3GPP Release 15 NSA/SA operation, Sub-6 GHz3GPP Release 15 NSA/SA operation, Sub-6 GHz5G NR NSAn38/n41/n77/n78/n79n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79n38/n41/n77/n78n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n795G NR SAn1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79MIMODL: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79UL: 2 × 2 MIMO on n41/n77/n78/n79DL: 4 ×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79UL: 2 ×2 MIMO on n41DL: 4 ×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79UL: 2 ×2 MIMO on n41DL 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78UL 2 × 2 MIMO on n41/n77/n78DL: 4 ×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79UL: 2 ×2 MIMO on n41LTEDL Cat 16/ UL Cat 18DL Cat 16/ UL Cat 18DL Cat 20/ UL Cat 18DL Cat 20/ UL Cat 18DL Cat 16/ UL Cat 18LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71LTE-TDDB34/B38/B39/B40/B41/B42/B43/B48B34/B38/B39/B40/B41/B42/B43/B48B34/B38/B39/B40/B41/B42/B43/B48B34/B38/B39/B40/B41/B42/B43/B48B34/B38/B39/B40/B41/B42/B43/B48LAAB46B46 (only support 2 ×2 MIMO)B46 (only support 2 ×2 MIMO)B46B46 (only support 2 ×2 MIMO)LTE MIMODL: 4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66DL: 4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66DL: 4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66DL 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66DL: 4 ×4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66WCDMAB1/B2/B3/B4/B5/B8/B19B1/B2/B3/B4/B5/B6/B8/B19B1/B2/B3/B4/B5/B6/B8/B19B1/B2/B3/B4/B5/B6/B8/B19B1/B2/B3/B4/B5/B6/B8/B19GNSSGPS/GLONASS/BeiDou (Compass)/GalileoGPS/GLONASS/BeiDou (Compass)/GalileoGPS/GLONASS/BeiDou (Compass)/GalileoGPS/GLONASS/BeiDou (Compass)/GalileoGPS/GLONASS/BeiDou (Compass)/GalileoCERTIFICATIONSREGULATORYGlobal: GCFEurope: CEChina: SRRC/CCC/NALSouth Korea: KCAustralia/New Zealand: RCMGlobal: GCFEurope: CENorth America: PTCRBAmerica: FCCCanada: ICJapan: JATE/TELECAustralia/New Zealand: RCMGlobal: GCFEurope: CENorth America: PTCRBAmerica: FCCCanada: ICJapan: JATE/TELECAustralia/New Zealand: RCMGlobal: GCFEurope: CENorth America: PTCRB①America: FCC*Canada: IC①Australia/New Zealand: RCMGlobal: GCFEurope: CENorth America: PTCRBAmerica: FCCCanada: ICJapan:JATE/TELECAustralia/New Zealand: RCMCARRIEREurope: Deutsche Telekom*China: China Telecom/China Mobile/China UnicomSouth Korea: KT*/SKT*/LGU+*Europe: Deutsche Telekom*America: Verizon*/AT&T*/T-Mobile*Japan: NTT DOCOMOTBDAustralia: Telstra*America: Verizon*/AT&T*/T-MobileAustralia: TelstraTBDAmerica: Verizon*/AT&T*/T-Mobile*Australia: Telstra*OTHERSRoHS/WHQLRoHS/WHQLRoHS/WHQLRoHS/WHQLRoHS/WHQLRM500Q-GLRM500Q-AERM502Q-AERM502Q-GLRM505Q-AEWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
