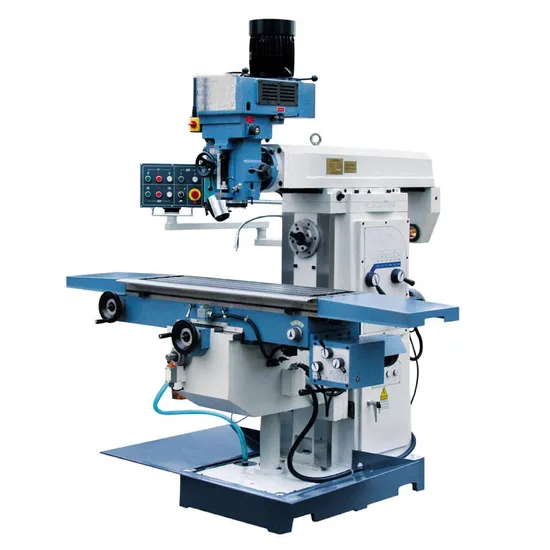

Automatic Medium Duty Knee Type Metal Vertical Milling Drilling Machine

Product Description

Product Description
APPLICATION:
Universal Swivel Head Milling Machine is a new product that is derived from X6132A Horizontal Universal Milling Machine with horizontal spindle and universal milling head, this machine belongs to horizontal universal compound milling machine. The machine can process horizontal and universal milling during once clamping and features high rigidity, compact structure, large parameter, high efficiency and easy operation. Antifriction measure is used in all sets of guideway and leadscrew. The universal milling head can mill at any angle in front half-sphere. The machine is suitable to plane, groove, drill and bore various workpiece of steel, cast iron and non-ferrous metal and is widely used in all machinery and mould industries
Feature
Milling, drilling, tapping, boring, reaming Head swivels or tilts Micro feed precision Heavy-duty tapered roller bearing spindle Positive spindle lock Adjustable gibs on table Geared drive lower noise Accurate position, strong rigidity, strong cutting power
OPTIONAL ACCESSORIES
vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support tablenew mini drilling & milling machine DMLTM-40

MODEL		DML6350A(C)	DML6350Z	DML6350Z	XZ6350ZB
Max. drilling dia (mm)		50; 30	50; 30	50; 30	50; 30
Spindle taper		M.T.4; R8; ISO30	M.T.4; R8; ISO30	M.T.4; R8; ISO40	M.T.4; R8; ISO40
Max. vertical milling dia (mm)		25	25	25	25
Max. boring dia (mm)		120	120	120	120
Max. tapping dia (mm)		M16	M16	M16	M14
Distance. spindle to talbe surface (mm)		100-480	100-490	90-370	100-430
Spindle speeds rage (r.p.m.) (steps)	Vertical	115-1750 (8)	115-1500 (8)	60-1500 (8)	38-1300 (8)
	Horizontal	40-1300 (12)	40-1300 (12)	40-1300 (12)	90-2000 (12)
Spindle travel (mm)		120	120	120	120
Automatic spindle feeds (mm/r)			0.08 0.15 0.25	0.08 0.15 0.25	0.08 0.15 0.25
Table size (mm)		1120 x 280; 1000 x 280	1120 x 280; 1000 x 280	1250 x 320	1120 x 260
Table travel (mm)		600 x 260	600 x 260	600 x 300 x 280	600 x 300 x 280
Overall dimensions (mm)		1400 x 1630 x 2350	1400 x 1630 x 2650	1700 x 1480 x 2150	1520 x 1285 x 2150
Motor (kw)	Vertical	0.85	1.5	1.5	1.5
	Horizontal	1.5/2.2	2.2	2.2	2.2
N.W./G/W. (kg)		1200/1350	1200/1350	1450/1550	1300/1400
