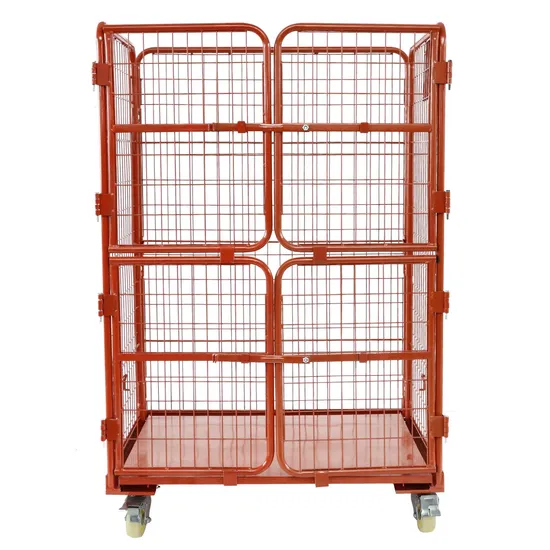

| Same design, different sizes | |||||
| Model No. | Exterior Dimension | Tube Diameter | Wire Diameter | Loading Capacity | Loaded in 1x40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| JM-001 | 720x810x1650 | Φ20x2 | Φ8&Φ 6 | 300 | 450 |
| JM-002 | 734x854x1680 | Φ19&25x2 | Φ10&Φ 6 | 500 | 360 |
| JM-003 | 734x854x1680 | Φ19&25x2 | Φ10&Φ 6 | 500 | 320 |
| JM-004 | 734x854x1680 | Φ19&25x2 | Φ3 | 500 | 320 |
| Material | Mild steel Q235 | ||||
| Available design | 1.Optional extra gates, removable shelf(each with 60kg to 80kg loading capacity) and top lid 2. Optional base -- square, "A", "Z" type design 3. Possible to add name plates for identification | ||||
| Application area | Warehouse, logistic, supermarket, etc. | ||||
| Finish | Zinc/powder coating/hot dip galvanized | ||||
| Remark | Costomized or OEM support | ||||
| Product Features | 1.Steel frame with wire mesh in-fill 2.Available in 2,3, or 4 sided in filled with steel rods and support rods 3.2 fixed and 2 swivel castors with or without brakes 4.Castors material options include nylon, pp as well as rubber | ||||
