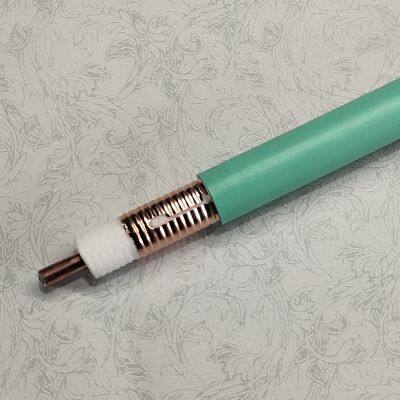

Product Description WLAN Radiating cable HLRCAYZ-50-12(1/2")Leaky cable 5.8GHz 1、Leaky cable functions as a distributed antenna to provide communications in tunnels, mines and large building complexes and is the solution for any application in confined areas. 2、Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length. 3、This leaky cable utilize a low-loss cellular polyethylene foam dielectric and a Corrugated copper foil outer conductor which offers a superior electrical performance together with good bending properties. 4、This product is suitable for WLAN communication systems, with low loss characteristics. Technical features Structural dimensions and materials 1、Inner Conductor------ Copper Clad Aluminum Wire--------------------------------- 4.8 mm 2、Insulation--------------Physical Foam Polyethylene-----------------------------------12.3 mm 3、Outer Condutor-------Overlapping Copper Foil---------------------------------------12.6 mm 4、Jacket----------------- Low Smoke Halogen-free Fire-retardant-----------------------15.5 mm MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS 1、Mininum Bending Radius-------------------------------------75mm 2、Repeated Bending Radius（15 times）----------------------150mm 3、Bending Torque-----------------------------------------------13.5N·m 4、Weight---------------------------------------------------------210 g/m 5、Recommended Clamp Distance------------------------------0.5mm 6、Minimum Distance to Wall------------------------------------50-80mm 7、Tensile Force---------------------------------------------------1000N 8、Storage Temperature---------------------------------------- -30 ℃ ~ ﹢80 ℃（LSZH) 9、Installation Temperature--------------------------------------20 ℃ ~ ﹢60 ℃（LSZH) 10、Operation Temperature--------------------------------------30 ℃ ~ ﹢80 ℃（LSZH) ELECTRICAL SPECIFICATIONS 1、Capacitance----------------------------------------75pF/m 2、Impedance-----------------------------------------50±2Ω 3、Velocity---------------------------------------------89% 4、Insulation Resistance------------------------------＞10000MΩ•km 5、Jacket Spark---------------------------------------8KV 6、Insulation Voltage--------------------------------6KV 7、Inner Conductor DC Resistance------------------1.65 Ω/km 8、Outer Conductor DC Resistance------------------6.5 Ω/km 9、Operating Frequency-----------------------------5000~6000MHz 10、Optimum Operating Frequency----------------5000~5800MHz 12、VSWR 5000~5850 MHz------------------------------≤1.4 13、ATTENUATION and COUPLING LOSS Frequency（MHz） Attenuation（dB/100m，20℃，±5%） Coupling Loss（dB，2m，50%/95%，±5dB ）
