Electric Self Propelled Aerial Work Platform for Sale 9m 10m 12m 14m 16m 19m 24m Articulating Boom Lift Man Lift Aerial Work Platform

US$33,000.00
1-3 Pieces
US$30,000.00
4-7 Pieces
US$29,000.00
8+ Pieces

Basic Info.

Model NO.
AB16EN
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Special Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, ISO 9001
Size
Metric
Maximum Platform Height
16 M
Machine Length
7.56 M
Machine Width
2.32 M
Working Load
230 Kg
Maximum Number of Workers (Indoor/Outd
2/0
Drive Speed-Stowed
4.8 Km/H
Power
48V DC
Weight
8400kg
Transport Package
Wooden Box
Specification
10m*7.65m*16m
Trademark
KINGDA
Origin
Tianjin, China
HS Code
84289090
Production Capacity
4000PCS/Year

Product Description

KINGDA HEAVY-DUTY
Professional manufacturer of high-altitude operation equipment Efficient high-altitude operation solution

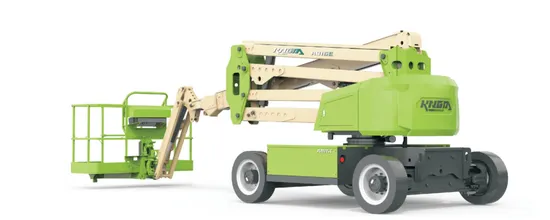

Articulating Boom Lift
Maximum Platform Height:16m
Product Feature
With 48V Dc battery pack, full scale handle control, thumb rocker steering,with functions of performing confrmation,tilt alarm,lowering and motionalarm.
Two-speed traveling,four-wheel drive and front axle foating of the whole machine.
Powerful diesel enginewith a maximum gradient of 45%.
With load sensing system and fault diagnosis system.
With emergency pump,emergency lowering and recovery of boom.
Screw-type engine tray,turntable with locking mechanism.


Standard Configuration
Proportional control Emergency platform lowering Auto-leveling
Self-locking door Tubing explosion-proof Foot switch
Full height drive Diagnostic system Load sensing system
Foam tires Tilt protection Hand brake release
Two-wheel drive Action buzzer Lanyard attachment points
Two-wheel steer Electric horn Tie-down and lifting points
Automatic braking Time count Emergency stop
Flashing beacons Charge protection Maintenance-free batteries
Rental management platform GPS


Specification Parameters
Model AB16EN
Size Metric
Maximum Platform height 15.7 m
Maximum horizontal reach 8.6 m
Up and over clearance max. 7.6 m
Machine Length 7 m
Machine Width 1.95 m
Machine Height 2 m
Platform dimensions (length×width) 1.4×0.7 m
Ground clearance-center 0.2 m
Wheelbase 2 m
Tire size 250-15
Productivity
Working load 230 kg
Working load - restricted /
Max. platform occupancy 2
Gradeability - stowed 30%
Drive speed - stowed 4.8 km/h
Drive speed - raised 0.8 km/h
Turning radius (inside/outside) 1.65/3.91 m
Tilt sensor activation (front to back/side to side)
Turntable rotation 355°
Platform rotation 160°
Turntable tailswing 0
Power 48V DC
Hydraulic tank capacity/Fuel volume 320 AH
Weight 6700 kg

Application
It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
Certifications


Cooperation Partner
Our Factory
Packaging&Shipping
FAQ
Q:What's your main products of your company?A:We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC MillingMachine,CNC TurningMaching, Vertical Machining Center ,Horizontal MachiningCenter, Lathe Machines, Turning andmilling composite processing so onQ:Where do you export?A:The whole world.Q:Could you produce non-standard products?A:Yes, we can. Please supply samples or drawing.Q;How do you transport it?A:Provide Transportation Solution DDP/CIF/FOB/FCAQ: What's the Payment Terms?A:T/T ,30% initial payment when order,70% balance paymentt before shipment.Q:What's the MOQ?A:1 set .(Only some low cost machines will be more than 1 seet )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for ourevaluation if possible, better to send us workpiece drawing, so that we canrecommend you most suitable model!2.lf need CIF Price, please kindly tell us the port of destination
• Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.
