S Series Horizontal Double Suction Centrifugal Pump

Product Description

S series Horizontal Double Suction Centrifugal Pump
Introduce
S series pump is single stage,double suction,horizontal split centrifugal pump.
Main pump parts:pump body,pump cover,impeller,shaft,seal ring etc.
Performance:
Flow:max 4400m3/h
Head:max 135m
Inlet&outlet:DN100-800mm
Working pressure:2.5Mpa
Application:
S split case double suction pump is suitable for transferring various liquids,
such as clean liquids or neutral liquids with small particles or weak-erosion
liquids.The product is applicable to water supply plant,agricultural irrigation,
power station,drainage in pump station,water supply system in industrial field,
air-conditioning system,fire-fighting system and so on
Data Sheet(Kindly Contact Us for More Models)

Model		Flow(m3/h)	Head(m)	Speed(rmin)	Power(kw)	Inlet/Outlet
100S90		80	90	2950	37	DN100/80
150S100		160	100	2950	75	DN150/100
150S78		160	78	2950	55	DN150/100
150S50		160	50	2950	37	DN150/100
200S95		280	95	2950	132	DN200/125
200S63		280	63	2950	75	DN200/150
200S42		280	42	2950	45	DN200/150
250S65		485	65	1450	160	DN250/150
250S39		485	39	1450	75	DN250/200
250S24		485	24	1450	45	DN250/200
250S14		485	14	1450	30	DN250/200
300S90		790	90	1450	315	DN300/200
300S58		790	58	1450	200	DN300/250
300S32		790	32	1450	90	DN300/250
300S19		790	19	1450	55	DN300/250
300S12		790	12	1450	37	DN300/300
350S125		1260	125	1450	710	DN350/200
350S75		1264	75	1450	355	DN350/250
350S44		1260	44	1450	220	DN350/300
350S26		1260	26	1450	132	DN350/300
350S16		1260	16	1450	75	DN350/350
500S98		2020	98	970	800	DN500/300
500S59		2020	59	970	450	DN500/350
500S35		2020	35	970	280	DN500/350
500S22		2020	22	970	185	DN500/400
500S13		2020	13	970	110	DN500/500
600S22		3170	22	970	250	DN600/500
600S32		3170	32	970	355	DN600/500
600S47		3170	47	970	560	DN600/400
600S75		3170	75	970	900	DN600/400
600S100		3170	100	970	1400	DN600/400

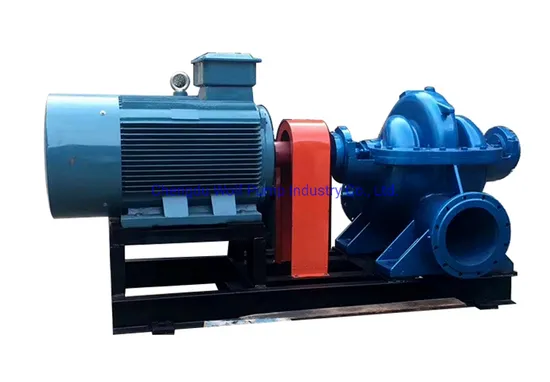

True Photo
Factory Introduction Our company CHENGDU WOLF PUMP INDUSTRY Co., Ltd specialized in pumps more than 20 years.
We have more than 20000 square meters modern factory and 100+ professional engineers,workers.
Our business scope have covered all kinds of pumps, like centrifugal pump, submersible pump,
vacuum pump, sewage pump, chemical pump, screw pump, diaphragm pump, fire pump, water supply
equipment and so on. Also welcome custom-made and OEM service. Our pumps are popular in
Southeast Asia, Middle Asia, Africa and Europe.
Every customer mostly care about products quality, our group have passed ISO9001: 2008 quality
control system. Double testing is our quality policy. 12 months warranty time and necessary spare
parts are welcomed by our customers. For international trade, third party inspection is supported.
FAQ
Q1:Are you manufacturer or trading company?
A:We are professional pump manufacturer and export pumps by ourselves.
Q2:What's your business scope?
A:We manufacture all kinds of centrifugal pump,sewage pump,vacuum pump,chemical pump,pump equipment and so on.
Q3:What's information for enquiry?
A:Basic information:flow,head and power
Q4:What's your payment terms?
A:Common payment terms:T/T,30% deposit,balance payment before shipment.
Western Union,Paypal
Q5:Terms of Shipment?
A:EXW,FOB,CIF,CPT.By sea,air or express.
Q6:How about warranty and after-service?
A:12 months warranty time after receiving days,not include quick-wear parts and default phase.We promise 24 hours action for your problem.
And send parts by air or express for maintain.

---
