Basic Info.
Process
Chocolate Machine
Automatic Grade
Automatic
Application
Ice Cream, Candy, Chocolate, Chips, Biscuit
Customized
Non-Customized
Suitable Products
Chocolate, Gummy Candy,Jelly Cang
Power Input
110/220V AC 50-60Hz
Machine Size (L*W*H)
620*550*600mm
After Packaged
800*700*700mm
Package
Wooden Case Package
Transport Package
Wooden Case
Specification
16mm*10 pistons
Production Capacity
50sets/Month
Product Description
Product Description

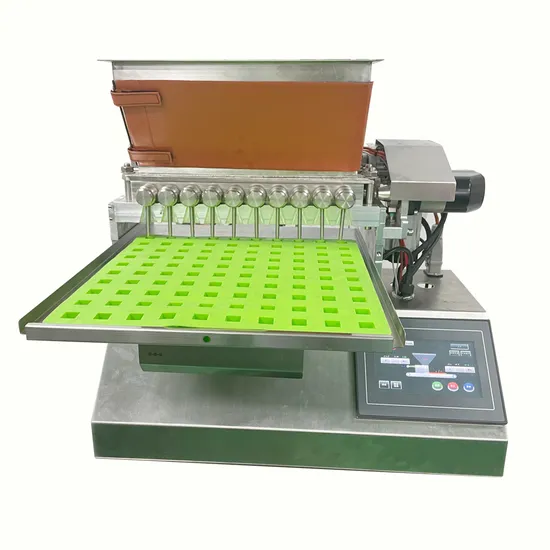

Nicely priced tabletop confectionery depositor with heated pistons for chocolate and gummy products. Suitable for PC molds, silicone molds, plastic molds, etc.
Main Features:*10 pistons with 10 adjustable nozzles*Stainless steel XL hopper with cover*SSS304 rotary valve
*Max temperature:130°C
*Servo drived depositing
Detailed Photos
Product Parameters
| Tank Capacity : | 10L |
| Power input : | 100-240V AC / 50-60Hz |
| Power output : | 24V DC / max.600W |
| Material : | Full SSS304 |
| Maximum heat : | 10°C |
| Machine size (L*W*H): | 620*550*600mm |
| Weight : | 80 kg |
| Warranty: | 1 Year |
| Depositing weight: | 2 to 10 grams / 0.10 to 0.58 fl oz. |
Can be purchased withTable-top demoulder (custom support)
Designed to remove a full sheet of candies from molds in one"pop"
Demold your trays in second .
Ideal for hard candies ,gummies ,caramels ,chocolates and fruit jelly.
The molds"popper"includes one standard mold frame to match the
mold you are using ,
Custom mold frames are available to work with your molds.
Easy to use ,just one pull to pop out a full mold sheet of candies .
Works best if the candies are cooled off and hardened!
Operation process
2.1.Select the mold frame that matches the mold you are using
2.2.Place the mold frame on to the Demoulder
2.3.Add your filled mold on top of frame
2.4.Pull level
2.5.Done!All your candies are demolde Packaging & Shipping
All machines are usually packed in wooden cases.
It can be shipped by air or sea. It can also be shipped by express if packed into 2 cases.
Installation Instructions
Connect machine to correct power supply . Top up heating oil and then you can easily start the machine according to the manual provided with machine.
After Sales Service
* 1 year standard warranty.
* 7*24h online support.
* Spare parts available.
* Free program update.
* Free sample mould.
* Free new product recommendation.
* On-line/On-site installation / training.
>>
