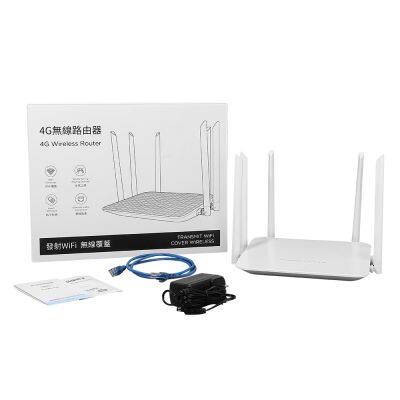

| Description | AC1200 Cat 6 openWRT 4g lte wifi router |
| Item no. | HY8210AC-Cat 6 |
| CPU | ASR 1826 |
| Wifi chipset | MTK 7628A+MT7612E |
| Interface | 1 WAN+4 LAN |
| Button | Reset/wps/wifi |
| Power Suppply | DC 12V/1.5A |
| DDR/SPI | 64MBytes/16MBytes |
| SIM Card | 2 FF |
| MIMO for WiFi | 2.4G 5dbi X 2; 5.8G 5dbi X 2; |
| Max. transmitter power for WiFi | 802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm; 802.11g 18dBm±2dBm; 802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm; |
| WiFi security | WPA/WPA2 |
| Software | APN Setting、Device Settings、Routing Settings、Firewall Settings |
| System | Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux |
| Browser | IE (7.0 and later), Firefox (3.0 and later), Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later) |
| EG060V-EA | LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 ; LTE-TDD: B38 / B40 / B41 ; 2 × CA②: B1 + B1 / B3 / B5 / B8 / B20 / B28 ; B3 + B3 / B5 / B7 / B8③ / B20 / B28 ; B7 + B5 / B7 / B8 / B20 / B28 ; B38 + B38; B40 + B40; B41 + B41 WCDMA: B1/B5/B8 |
| Protocol | IEEE 802.11n; IEEE 802.11g; IEEE 802.11b |
| Operating Environment | Operating Temperature:Normal:0°C to +45°C; Operating Temperature:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95% |
| Dimension | Device: 34*27*6cm; 0.73Kg/pc; |
| 20pc/ctn; CTN size: 63*35*55cm; G.W.: 16.1Kg/ctn; |
