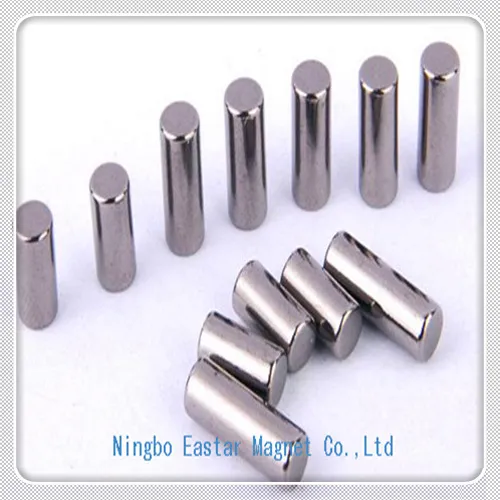

N48 Cylinder Neodymium Magnet for Motor

Product Description

Neodymium Mortor Magnet with Zinc/Nickel plating:
1. Materials: Neodymium-Iron-Boron
2. Shape: tile, blocks, rings, beads...as clients design
3. Magnet grade: from N35, N38,....N50, N52, H, SH, UH, EH series...
4. Plating coat: Nickel, Zinc, epoxy, black nickel, silver, gold...
5. Certificate: ROHS, TS16949; ISO9001: 2002;
Cylinder Magnets or Tile magnets is one popular shape of Rare earth magnets and perment magnets.
It is always manufactured via Cutting, Slicing, Centerless grinding, etc.
Cylinder magnets have the following important factors such as, Diameter and Height etc
To offer you our Cylinder or Tile magnets price, please offer the following details:
Magnets grade: From N35 To N50, from N Serieces to UH Series.
Magnets size: Diameter and Height, out radius and inner Radius, Chord Length etc...
Magnetism direction: Which direction to oriented The north pole and south pole
Magnets coating: Nickel, Zn, Black Epoxy, AG, Au etc.
Quantities: More mass order the price more lower. Original factory.
NdFeB Disc Magnet:
- N35-N52, N48M, N48H, N48SH, N38UH, N38EH.
- Max temperature: 80-230'C
- Dimension range: 1-280 mm
- Guaranteed quality
Product specifications:
1. NdFeB Permanent Magnets with different grades of: N35, N38, N40, N42, N45, N48, N50, N52(M, H, SH, UH, EH) etc.
2. Working temperature for NdFeB Permanent magnets: From 80 centigrades to 230 centigrades.
3. Can be magnetized according to the requirements of clients.
4. Coatings: Ni, Zn, epoxy, gold, silver, Cu and so on(as per the requirements).
5. NdFeB magnet has super strong magnetic force and high intrinsic coercive force.
6. With precise tolerance.
Application for NdFeB magnet:
Magnetic separator, Sensors, Wind generators, Vibration motors, DC motors, Servo motors, Linear motors, VCM, MRI, Loudspeakers, Linear actuators, drives, toys, bags, household appliances, microphone parts, transmission equipments...
Remarks:
1, HHMAG has years' experiences in magnets producing and we can Produce magnets acccording to your own specifications or designs.
2, We deliver goods in time and have excellent after-sale service.
3, Commited to customers with our best service and with the most that we1. Magnet: Neodymium magnet
2. Characteristics:
Super strong Br resident induction.
Excellent demagnetization resistance capability.
3. Surface Treatment Method:
Black Nickel, Chroming, Copper, Epoxy, Gold, Nickel, Nickel+Epoxy, Nickel+Sn, Passivation, Zinc, phosphating
4. Applications of Neodymium Magnets:
AC Motors, DC Motors, servo motors, step motors
Computer rigid disc drives
Magnetic Separators
Magnetic resonance imaging
Speakers & earphones
Medical care machines

Parameter	unit	Standard Data
Curie Temperature(Tc)	ºC	310-380
Maximum Operating Temperature(Tw)	ºC	80-200
Hardness	Hv	620
Electrical Resistivity	Ω.CM	1.8X10-4 ~2.0X10-4
Density(D)	g/cm3	7.5~7.65
Recoil Permeability	µ rec	1.05
Magnetization Field Strength(Hs)	KOe	> 30
	KA/m	> 2400
Bending Strength	Mpa	295~345
Temp. Coefficient of Br (aBr)	%/ºC	-0.11~ -0.12
Temp Coefficient of Hcj (aHcj)	%/ºC	-0.5~ -0.7

Company Profile
Test Equipment & Workshop
• Demagnetization Curves & Outgoing Inspection Report for each shipment.

Packaging & Shipping
Standard Packaging
• Vacuum packaging for all Neodymium magnets and Neodymium magetic assemblies.
• Shielding box and wooden box to protect the Neodymium magnets during shipping.
Shipping Methods
• Contract price with FedEx, DHL, UPS and TNT to minimum your shipping cost.
• Experienced shipping forwarder for Ocean and Air shipments.
