Basic Info.
Thread Position of Valve Rod
Inside Gate Valve
Application
Industrial Usage, Water Industrial Usage
Rising or Non-Rising
Rising and Non-Rising
Body
Ductile Iron, Carbon Steel, Stainless Steel
Gate
Ductile Iron + EPDM or NBR, Stainless Steel
Allen Bolts
Carbonization Process
Bonnet
Ductile Iron, Carbon Steel, Stainless Steel
Bolt
Carbon Steel, Alloy Steel, Stainless Steel
Transport Package
Wooden Case
Specification
DN50-DN1200
Production Capacity
1000000
Packaging & Delivery
Package Size
110.00cm * 110.00cm * 110.00cm
Package Gross Weight
600.000kg
Product Description

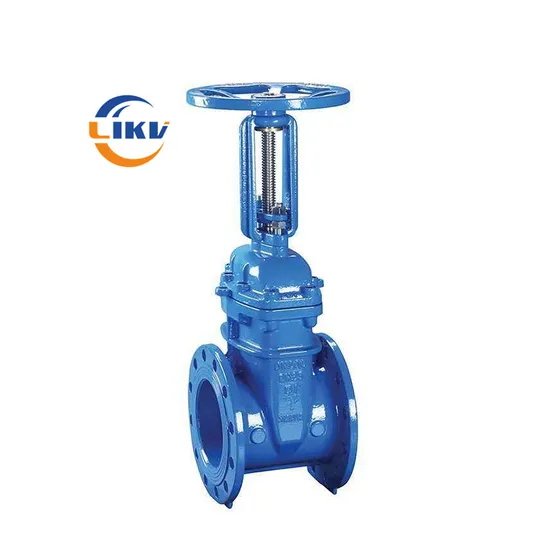

DIN 3352- F4 RISING STEM SOFT SEATED GATE VALVE
Materials of main parts
| Part name | Material |
| Body | Ductile iron, Carbon steel, Stainless steel. |
| Gate | Ductile iron+EPDM or NBR, Stainless steel |
| Allen bolts | Carbonization process |
| Seals | NBR, EPDM |
| Bonnet | Gray iron, Ductile iron, Carbon steel, Stainless steel |
| Stem | Stainless steel |
| O-ring seals | NBR |
| Thrust bearings | Tin bronze |
| Bolt | Carbon steel, Alloy steel, Stainless steel |
| Gland | Ductile iron, Carbon steel, Stainless steel |
| Dust Cover | NBR |
| Handwheel | Malleable iron |
Product Category
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | F4 | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 |
| BS | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 |
| F5 | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 |
| Hmin | 322 | 332 | 350 | 420 | 581 | 581 | 736 | 882 | 1009 | 1300 | 1380 |
| Hmax | 374 | 398 | 429 | 524 | 721 | 736 | 942 | 1013 | 1117 | 1655 | 1805 |
Product details
Qualification certificate
Production process
Production equipment
If you want to learn more, please contact us
LIKE VALVE (TIANJIN) CO., LTD
Sales Manager
Yang Lee
http://likevalve.en.made-in-china.com
Address: H12 Tengfei Base of Xiaozhan Industrial Area, Jinnan District , Tianjin, China
We will always be here to try our best to provide you our best service!
>>
