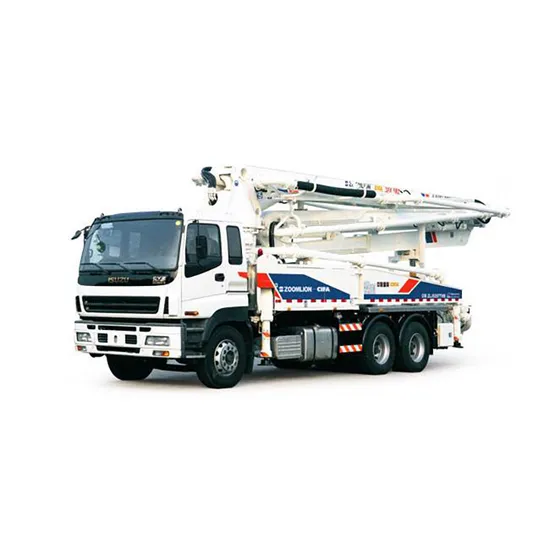

Zoomlion Concrete Pump Truck Mounted Crane 36m 46m 52m Boom 52X-6rz Sale

Product Description

High quality perfoemance 52m truck mounted concrete pump ZOOMLION 52X-6RZ
Product description Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.
Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Dual-pump and dual-loop hydraulic system: Less hydraulic impact, High efficiency, Low failure rate.
Three-stage fault diagnosis: boot self-check, process self-chec and shutdown detection is adopted to realize the overall control of the product's health condition.
Long life wearing parts: Reduce working cost remarkably. Continuously improve wearing part's life by using new material, new process and new designing.
Parameter

Pump Unit	Max. Theor. output	m3/h	120/80
	Max. Theor. concrete output Pressure	MPa	7/11
	Rated working pressure	MPa	35
	Pumping frequency	min-1	24/15
	Hopper capacity	L	550
	Filling height	mm	1540
	Hydraulic system type		opened loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom Section	Structure type		36X-5Z
	Placing depth	m	35.5
	Max. horizontal distance	m	35.15
	Max. placing depth	m	23.13
	Slewing angle		±350°
	Boom number		5
	The length of boom section	mm	7700/5950/5950/5950/5950
	Sections folding angle		90°/180°/230°/180°/250°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	8520
	Outriggers span (front×rear×side)	mm	6030×5950×7300
Upper Structure	Upper Structure Mass	kg	25000
	Dimensions(L×W×H)	mm	10740×2500×3886
