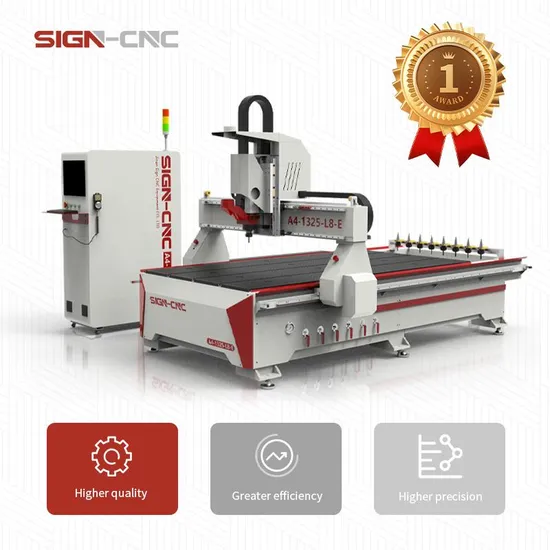

2024 Latest Models CNC Router Machine Atc Router for Wood and MDF 3 Axis Processing with Popular Discount

Product Description

2024 Latest Models CNC Router Machine Atc Router for Wood and MDF 3 Axis Processing with Popular Discount
Product Description

Machine features:
A4 series Economical ATC CNC Router with AC servo motor and linear automatic 8 tools changer, which can meet the needs of complex 3D process processing. Basic configuration, affordable price, high cost-effectiveness.
CNC router can be used to produce items such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture.
Product Parameters

Model	A4-1325 / 1530 / 2030 /2040-E
X, Y Working Size	1300*2500mm / 1500*3000mm / 2000*3000mm /2000*4000mm
Z-axis Height	300mm
Table Surface	Vacuum table
X, Y Structure	Helical rack and High precision 25mm square guide rail
Z Structure	High precision 25mm square guide rail and ball screw
Max. Power Consumption	(Without spindle) 2.0KW
Max. Rapid Travel Rate	45m/min
Max. Working Speed	30m/min
Spindle Power	HQD 9KW ATC air-cooled ER32 spindle
Spindle Speed	0-24000RPM
Inverter	Folinn high frequency 11KW Inverter
Drive Motors	750W AC servo motor
Reducer	Japanese Shimpo planetary reducer
Pump	5.5KW air cooling pump (7.5KW available)
Working Voltage	AC380V/50/60Hz
Command Language	G code
Control System	Shanlong L68control system (English, Español,Русский, Português,Vietnamese)
Tool sensor	Adjust the distance from the tool to the materials
X,Y,Z Repositioning Accuracy	±0.05mm
X,Y Resolution	<0.05mm
Software	Artcam with post processor
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Packaging & Shipping

Company Profile
To ensure the overall high quality of machine,all accessories are selected from the original first-line brands,our experienced team strictly follows the drawings for assembly, at least 3 comprehensive tests and support third-party inspection.
Customer feedback

FAQ

Q: What is the warranty:
A:Two years guarantee of the whole machine,one year for electrical components
- For hardware issue, fail parts (excluding the consumables)shall be replaced/repaired free of charge during the warranty period.
-For software issue, provide the operation manual or video for guiding, our technician is able to teach you online to run the machine or eliminate the fault for free.
Q: How do I choose CNC router model?
A: Just let us know your working demands, suitable models will be recommended. We have MTC CNC router, ATC woodworking center, pneumatic tool changer CNC router, multi-head CNC router, foam machining center, 4-Axis/5-Axis ATC CNC router and various types of woodworking machines.

---
